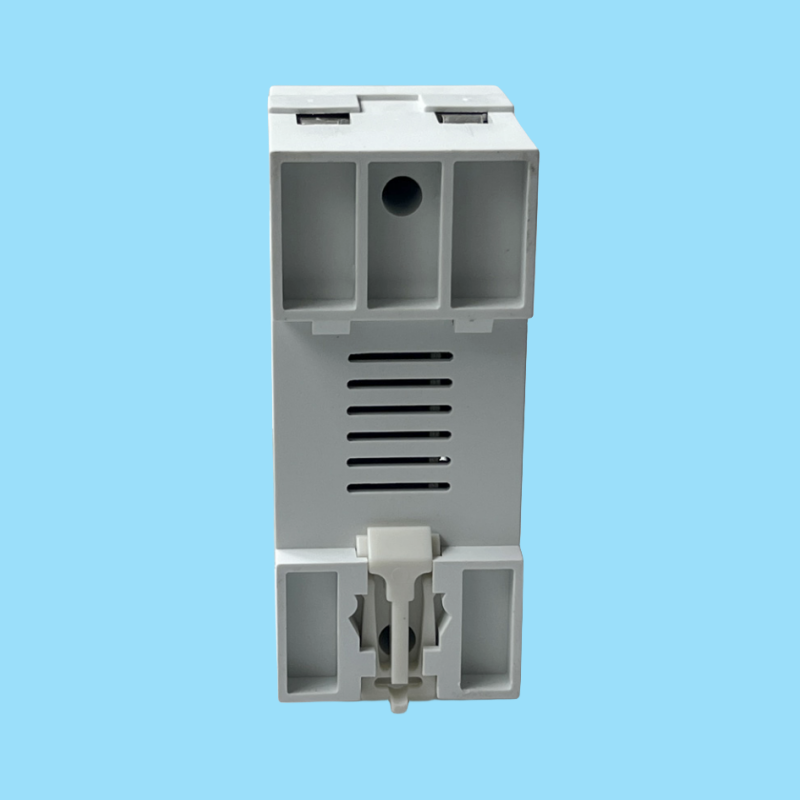

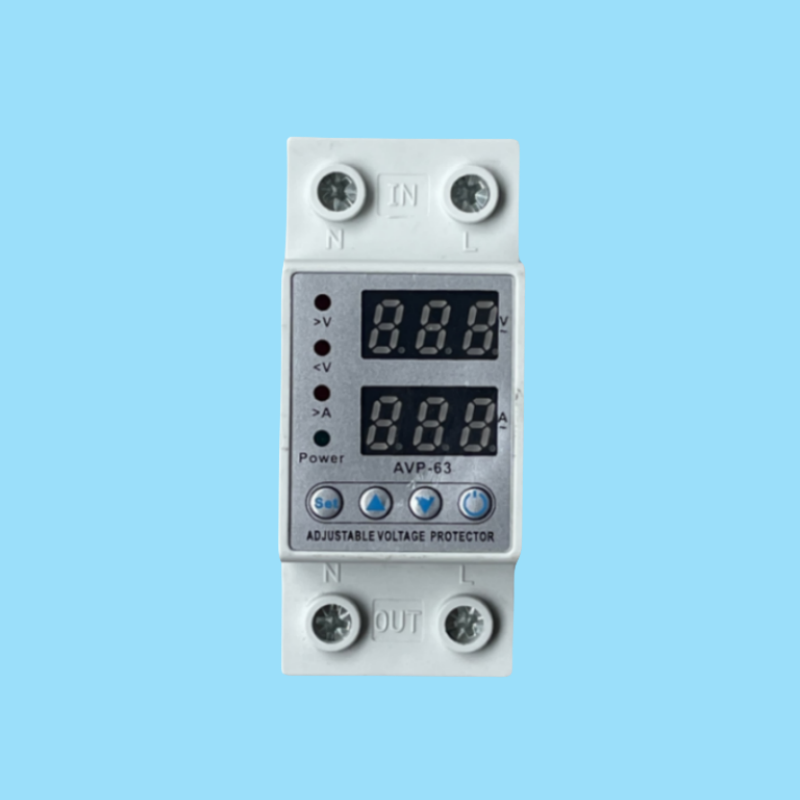

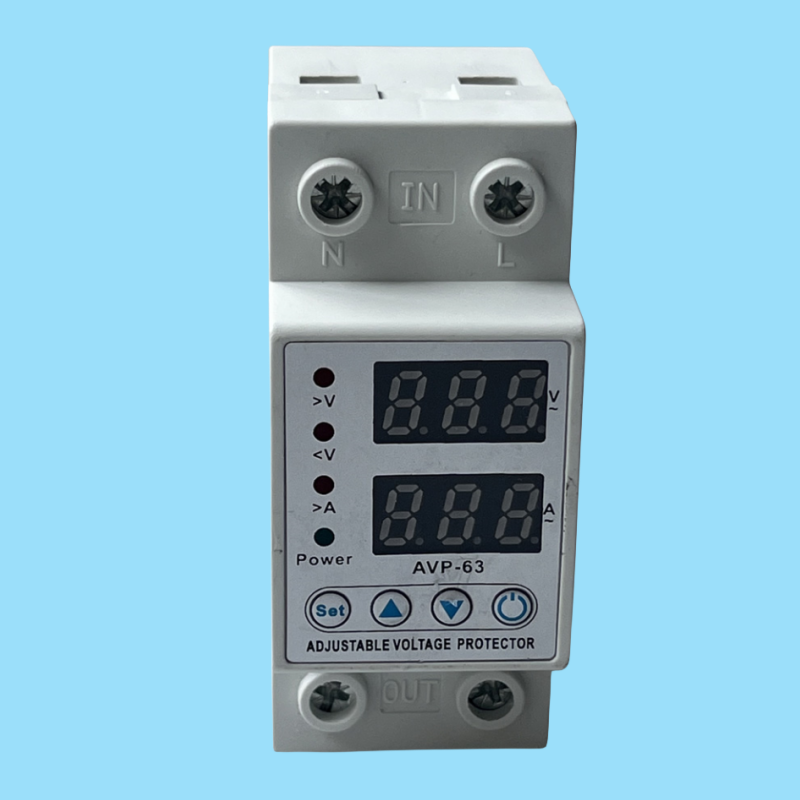

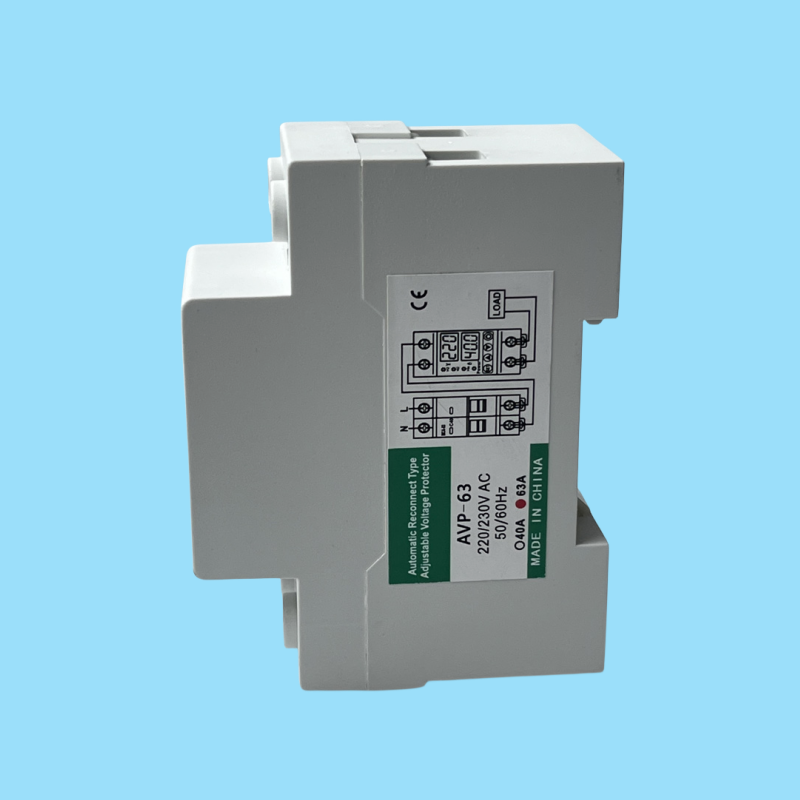

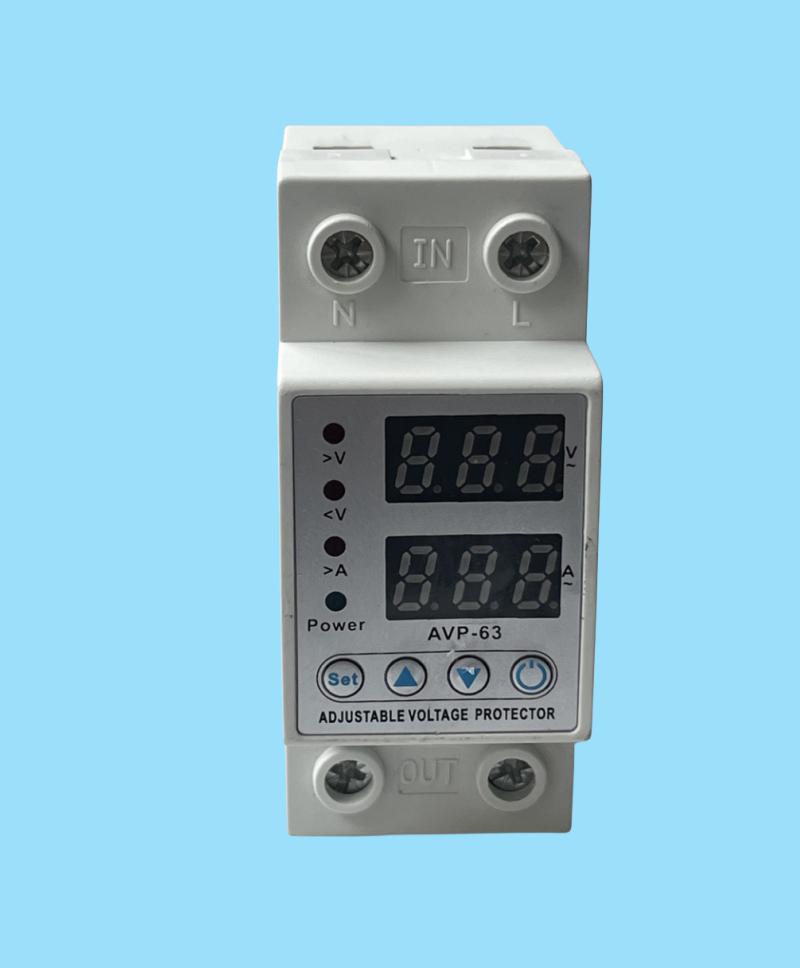

80A 230V Household Adjustable Overvoltage Protection Device
>

80A 230V Household Adjustable Overvoltage Protection Device

80A 230V Household Adjustable Overvoltage Protection Device

Description
1、Circuit will be cut off for overvoltage and undervoltage of the single phase circuit. It will automatic reset the connecting
circuit after the voltage recovery of single-phase circuit and delay of time without manual operation.
2、Circuit protection will produce no malfunction ofr transient of temporary overvoltage, which can avoid voltage instability.
3、Protection device will not be damaged for circuit disconnection of protection device or sudden power recovery after sudden power
failure carused by weak jonits.
4、Protection deveice will not be damaged for the maximum overvoltage of circuit fault

Brand: KECN
Product origin: WenZhou,China
Delivery time: 3days
Supply capacity: To be negotiated

Information

Safeguard your home's electrical system with the 80A 230V Household Adjustable Overvoltage Protection Device, your premier choice for reliable voltage regulation. This device is meticulously engineered to provide 80A Overvoltage Protection, ensuring that your household appliances are defended against the damaging effects of voltage surges. With its 230V Household Device rating, it's perfectly suited for the demands of everyday home use, offering a robust solution for electrical safety.

The Adjustable Voltage Protector feature allows you to customize the sensitivity of the device to match the specific needs of your electrical setup. This level of adjustability makes it an ideal solution for a wide range of household applications, from protecting your entertainment system to safeguarding your home office equipment.

Experience the peace of mind that comes with our 80A 230V Household Adjustable Overvoltage Protection Device. It's not just a device; it's a shield against power anomalies, a guardian for your home's electrical well-being. Invest in adjustable protection that's designed to adapt and respond to your household's unique voltage requirements.

Adjustable Voltage Protector

Description
1、Circuit will be cut off for overvoltage and undervoltage of the single phase circuit. It will automatic reset the connecting
circuit after the voltage recovery of single-phase circuit and delay of time without manual operation.
2、Circuit protection will produce no malfunction ofr transient of temporary overvoltage, which can avoid voltage instability.
3、Protection device will not be damaged for circuit disconnection of protection device or sudden power recovery after sudden power
failure carused by weak jonits.
4、Protection deveice will not be damaged for the maximum overvoltage of circuit fault
Specification
Rated voltage ：230V
Rated frequency：50/60Hz
Rate current：1A-100A adjustable (default 63A)
Under-voltge action cut-off value: 100V-210V adjustable(defait 170V)
over-voltage action cut-off value: 230V-300V adjustable (default 270V)
Power recovery delay after power failure:5s
Range of time delay: 1s-600s adjustable (default 30s)
Electrical machinery life-span:minimum 50000 times
Exterior dimension:82x35x65mm
Overvoltge and undervoltage restore value is 5V of the set value and overcurrent restore value is 1A less than set value
Rated limit overcurrent：40,63A,80A,100A

Model Number:	AVP-80
Display Type	Digital Only
Measuring Range	1~40A 1~63A 1-80A 1-100A
Accuracy Class	Calss 1
Operating Temperature	-25~+50℃
Dimensions:	823565mm
Rated Current	40A 63A 80A 100A
Rated voltage:	110/120VAC
