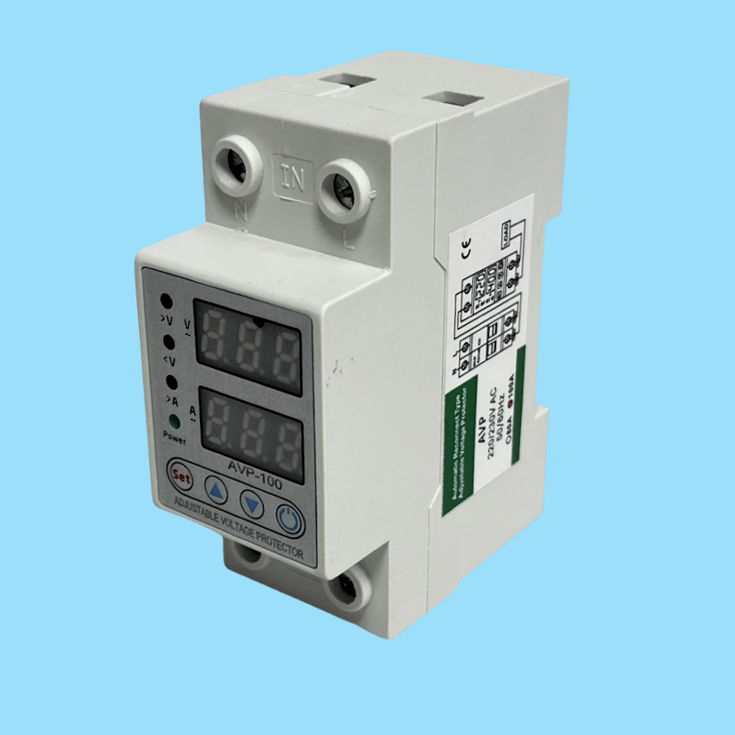

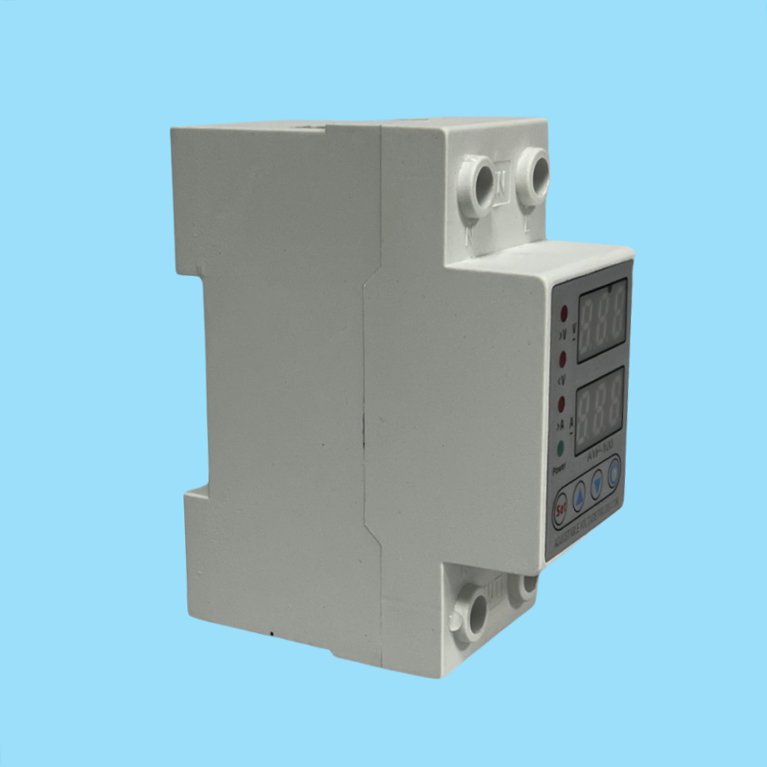

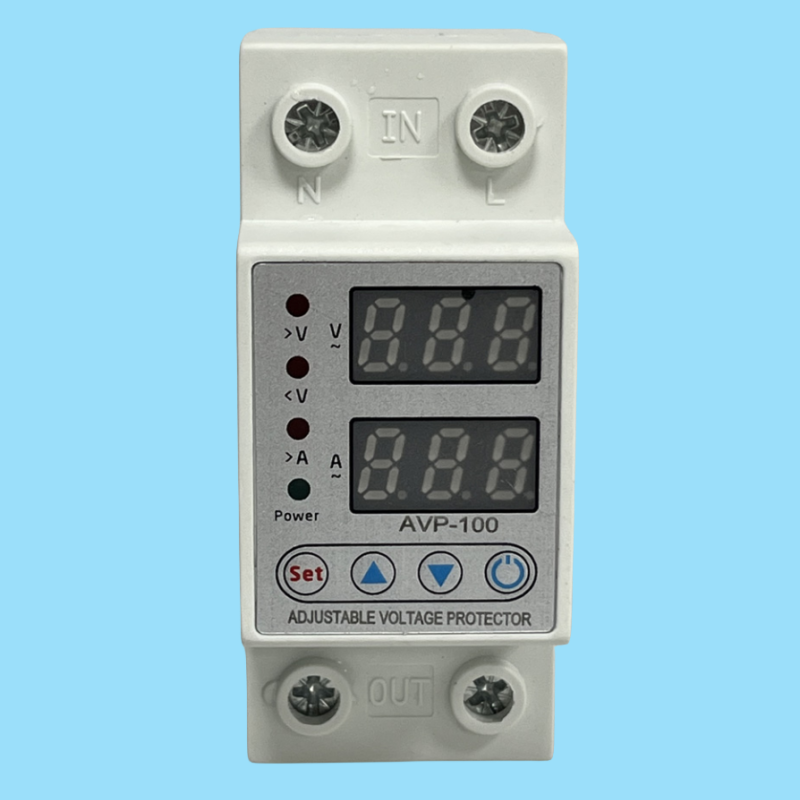

High quality adjustable voltage protector AVP-100 self resetting overvoltage and undervoltage protector
Ensure the safety of your electrical devices with the High Quality Adjustable Voltage Protector AVP-100. This Self Resetting Overvoltage and Undervoltage Protector is designed to provide reliable protection against voltage fluctuations. With its easy-to-use adjustable settings, the AVP-100 Model offers precise voltage regulation, making it suitable for a wide range of applications. Experience the peace of mind that comes with our high-quality electrical surge protection. The AVP-100 is not just a protector—it's a guardian for your home and business electrical systems.
- KECN
- WenZhou,China
- 3days
- To be negotiated
- Information
Key attributes
Industry-specific attributes
Phase
Single Phase
Current Type
AC
Other attributes
Place of Origin
Zhejiang, China
Brand Name
KECN
Model Number
AVP-100
Use
Protective devices
Under-voltge action cut-off value
210V-140V adjustable(default 170V)
Range of time delay
1s-600s adjustable(defauIt 30s)
Exterior dimension
85x36x66mm
frequency
50HZ
Rate current
1A-40A adjustable(default 40A)
Over-voltage action cut-off value
230V-300V adjustable(default 280V)
Electrical machinery life-span
minimum 50000 times
air tmeperature
not exceed +40℃ or lower then-5℃
Power recovery delay after power failure
5s
protect
Overvoltage/undervoltage, overcurrent
Packaging and delivery
Packaging Details
Carton
Port
Shanghai / Ningbo
Supply Ability
Supply Ability
100000 Piece/Pieces per Month
Product Description
Description
1、Circuit will be cut off for overvoltage and undervoltage of the single phase circuit. It will automatic reset the connecting
circuit after the voltage recovery of single-phase circuit and delay of time without manual operation.
2、Circuit protection will produce no malfunction ofr transient of temporary overvoltage, which can avoid voltage instability.
3、Protection device will not be damaged for circuit disconnection of protection device or sudden power recovery after sudden power
failure carused by weak jonits.
4、Protection deveice will not be damaged for the maximum overvoltage of circuit fault
Specification
Rated voltage ：230V
Rated frequency：50/60Hz
Rate current：1A-100A adjustable (default 63A)
Under-voltge action cut-off value: 100V-210V adjustable(defait 170V)
over-voltage action cut-off value: 230V-300V adjustable (default 270V)
Power recovery delay after power failure:5s
Range of time delay: 1s-300s adjustable (default 30s)
Electrical machinery life-span:minimum 50000 times
Exterior dimension:82x35x65mm
Overvoltge and undervoltage restore value is 5V of the set value and overcurrent restore value is 1A less than set value
Rated limit overcurrent：40,63A,80A,100A
1、Circuit will be cut off for overvoltage and undervoltage of the single phase circuit. It will automatic reset the connecting
circuit after the voltage recovery of single-phase circuit and delay of time without manual operation.
2、Circuit protection will produce no malfunction ofr transient of temporary overvoltage, which can avoid voltage instability.
3、Protection device will not be damaged for circuit disconnection of protection device or sudden power recovery after sudden power
failure carused by weak jonits.
4、Protection deveice will not be damaged for the maximum overvoltage of circuit fault
Specification
Rated voltage ：230V
Rated frequency：50/60Hz
Rate current：1A-100A adjustable (default 63A)
Under-voltge action cut-off value: 100V-210V adjustable(defait 170V)
over-voltage action cut-off value: 230V-300V adjustable (default 270V)
Power recovery delay after power failure:5s
Range of time delay: 1s-300s adjustable (default 30s)
Electrical machinery life-span:minimum 50000 times
Exterior dimension:82x35x65mm
Overvoltge and undervoltage restore value is 5V of the set value and overcurrent restore value is 1A less than set value
Rated limit overcurrent：40,63A,80A,100A
Details Images
Protection performance: The AVP digital display overvoltage/undervoltage protector can detect abnormal voltage in a timely manner and take rapid protection measures to effectively prevent damage to electrical equipment. It can help extend the service life of electrical equipment.
High accuracy: AVP digital display overvoltage and undervoltage protectors typically have precise voltage monitoring and display functions, providing real-time voltage readings and allowing users to have a clear understanding of power grid conditions.
Versatility: In addition to overvoltage and undervoltage protection functions, some AVP digital display overvoltage and undervoltage protectors may also have other functions, such as overload protection, short circuit protection, overcurrent protection, etc., providing comprehensive electrical protection.
Easy to install and operate: AVP digital display overvoltage and undervoltage protectors usually have a simple installation and operation process, and users can set and adjust according to instructions.
