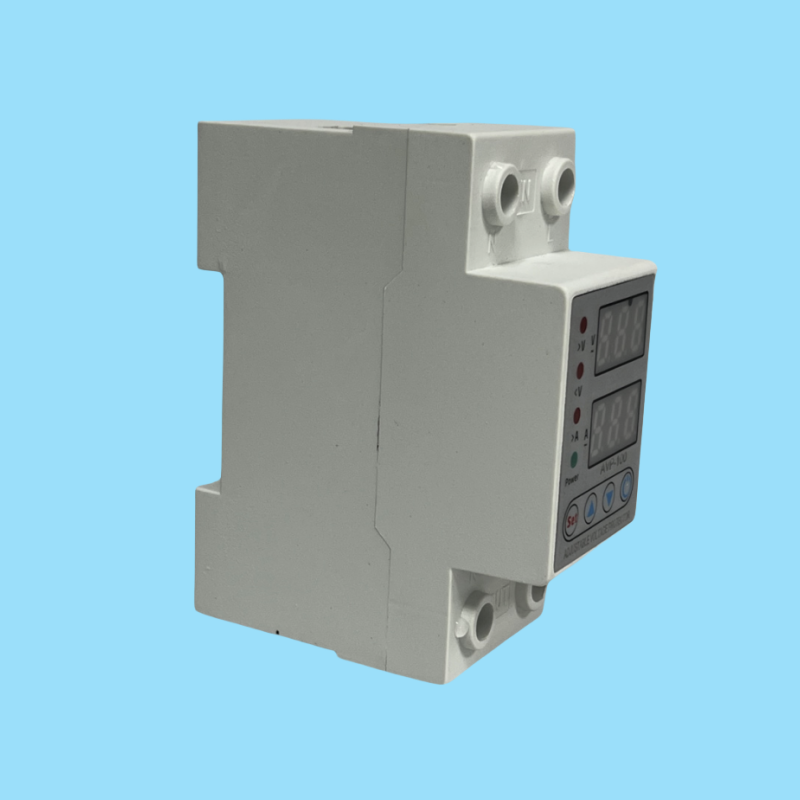

AVP 100A Dual Display Overvoltage Electronic Protector
Protection performance: The AVP digital display overvoltage/undervoltage protector can detect abnormal voltage in a timely manner and take rapid protection measures to effectively prevent damage to electrical equipment. It can help extend the service life of electrical equipment.
- KECN
- WenZhou,China
- 3days
- To be negotiated
- Information
- Video
Product Description
Description
1、Circuit will be cut off for overvoltage and undervoltage of the single phase circuit. It will automatic reset the connecting
circuit after the voltage recovery of single-phase circuit and delay of time without manual operation.
2、Circuit protection will produce no malfunction ofr transient of temporary overvoltage, which can avoid voltage instability.
3、Protection device will not be damaged for circuit disconnection of protection device or sudden power recovery after sudden power
failure carused by weak jonits.
4、Protection deveice will not be damaged for the maximum overvoltage of circuit fault
Specification
Rated voltage ：230V
Rated frequency：50/60Hz
Rate current：1A-100A adjustable (default 63A)
Under-voltge action cut-off value: 100V-210V adjustable(defait 170V)
over-voltage action cut-off value: 230V-300V adjustable (default 270V)
Power recovery delay after power failure:5s
Range of time delay: 1s-300s adjustable (default 30s)
Electrical machinery life-span:minimum 50000 times
Exterior dimension:82x35x65mm
Overvoltge and undervoltage restore value is 5V of the set value and overcurrent restore value is 1A less than set value
Rated limit overcurrent：40,63A,80A,100A
1、Circuit will be cut off for overvoltage and undervoltage of the single phase circuit. It will automatic reset the connecting
circuit after the voltage recovery of single-phase circuit and delay of time without manual operation.
2、Circuit protection will produce no malfunction ofr transient of temporary overvoltage, which can avoid voltage instability.
3、Protection device will not be damaged for circuit disconnection of protection device or sudden power recovery after sudden power
failure carused by weak jonits.
4、Protection deveice will not be damaged for the maximum overvoltage of circuit fault
Specification
Rated voltage ：230V
Rated frequency：50/60Hz
Rate current：1A-100A adjustable (default 63A)
Under-voltge action cut-off value: 100V-210V adjustable(defait 170V)
over-voltage action cut-off value: 230V-300V adjustable (default 270V)
Power recovery delay after power failure:5s
Range of time delay: 1s-300s adjustable (default 30s)
Electrical machinery life-span:minimum 50000 times
Exterior dimension:82x35x65mm
Overvoltge and undervoltage restore value is 5V of the set value and overcurrent restore value is 1A less than set value
Rated limit overcurrent：40,63A,80A,100A
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Details Images
Protection performance: The AVP digital display overvoltage/undervoltage protector can detect abnormal voltage in a timely manner and take rapid protection measures to effectively prevent damage to electrical equipment. It can help extend the service life of electrical equipment.
High accuracy: AVP digital display overvoltage and undervoltage protectors typically have precise voltage monitoring and display functions, providing real-time voltage readings and allowing users to have a clear understanding of power grid conditions.
Versatility: In addition to overvoltage and undervoltage protection functions, some AVP digital display overvoltage and undervoltage protectors may also have other functions, such as overload protection, short circuit protection, overcurrent protection, etc., providing comprehensive electrical protection.
Easy to install and operate: AVP digital display overvoltage and undervoltage protectors usually have a simple installation and operation process, and users can set and adjust according to instructions.
