Working principle: 1.Voltage monitoring: The AVP digital display overvoltage/undervoltage protector will monitor the voltage of the input power in real-time. It is usually connected to the power line to detect voltage fluctuations and changes.
2.Threshold setting: Users can set upper and lower threshold values, which are the highest and lowest voltage limits. In general, when the voltage exceeds the set maximum limit or falls below the set minimum limit, the protector will trigger.
3.Trigger protection: When the voltage exceeds the set range, the protector will trigger the protection mechanism, usually cutting off the power supply or taking other measures to ensure that the electrical equipment is not damaged.

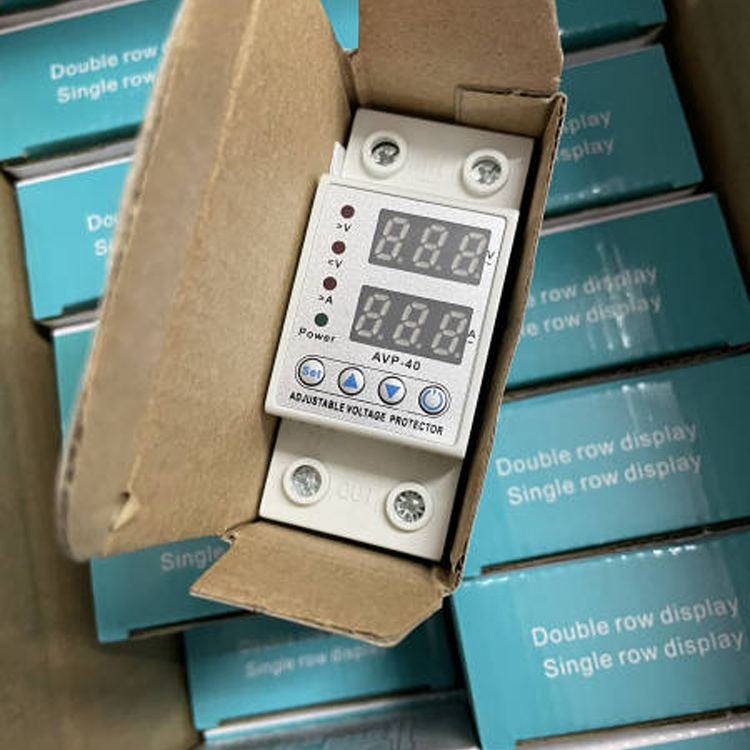

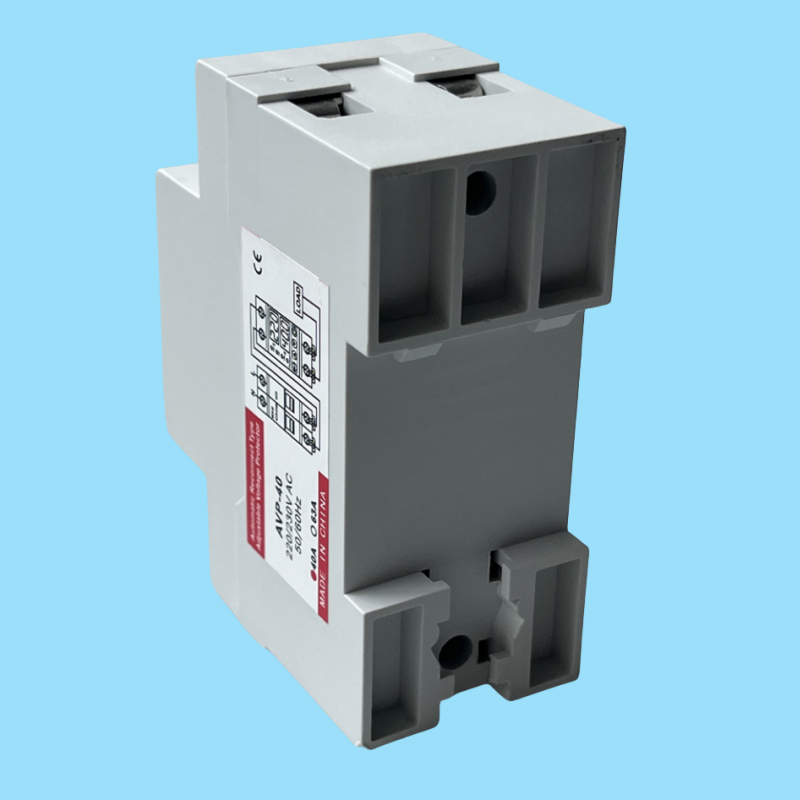

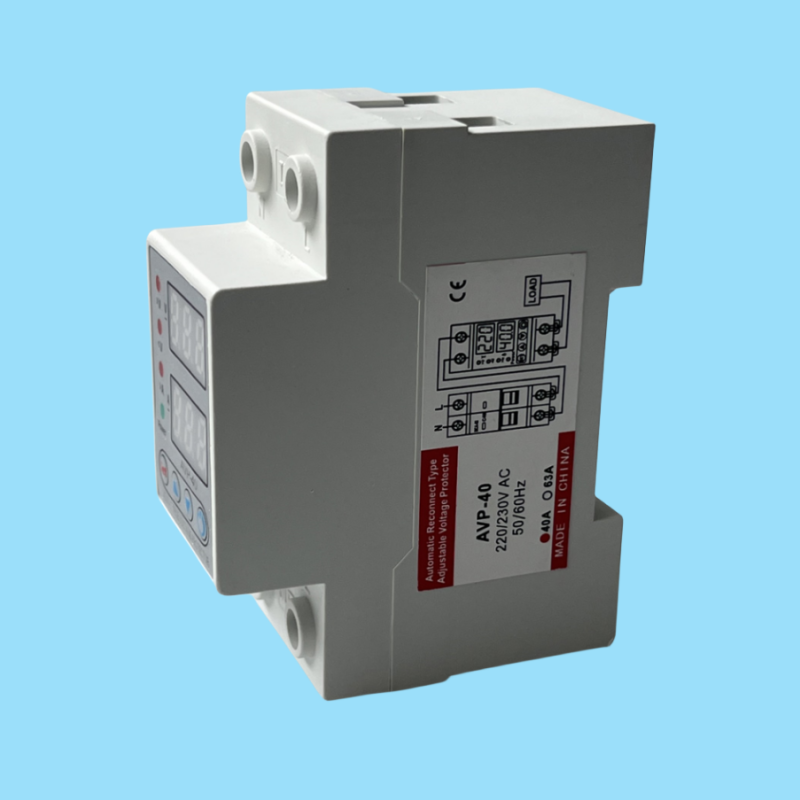

AVP-40 active protection voltage relay control undervoltage protector 230V 40A over-voltage and over-current protection device
Protect your electrical systems with the AVP-40 Active Protection Voltage Relay, an Undervoltage Protector designed for 230V 40A applications. This robust device offers dual protection against over-voltage and over-current threats, ensuring the safety and stability of your electrical infrastructure. The AVP-40 is more than a relay—it's a guardian for your electrical components. Experience the reliability of our protection device, crafted to meet the demands of your industrial and residential needs. Invest in the AVP-40 and secure your system's future with active voltage management.
- KECN
- WenZhou,China
- 3days
- To be negotiated
- Information
- Video
Key attributes
Industry-specific attributes
Phase
Single Phase
Current Type
AC
Other attributes
Place of Origin
Zhejiang, China
Brand Name
KECN
Model Number
AVP-40
Under-voltge action cut-off value
210V-140V adjustable(default 170V)
Range of time delay
1s-600s adjustable(defauIt 30s)
Exterior dimension
85x36x66mm
frequency
50HZ
Rate current
1A-40A adjustable(default 40A)
Over-voltage action cut-off value
230V-300V adjustable(default 280V)
Electrical machinery life-span
minimum 50000 times
air tmeperature
not exceed +40℃ or lower then-5℃
Power recovery delay after power failure
5s
Packaging and delivery
Packaging Details
Standard export packing or packing as your requirements
Port
NINGBO/SHANGHAI/GUANGZHOU/FUZHOU
Supply Ability
Supply Ability
50000 Piece/Pieces per Month
Product Description

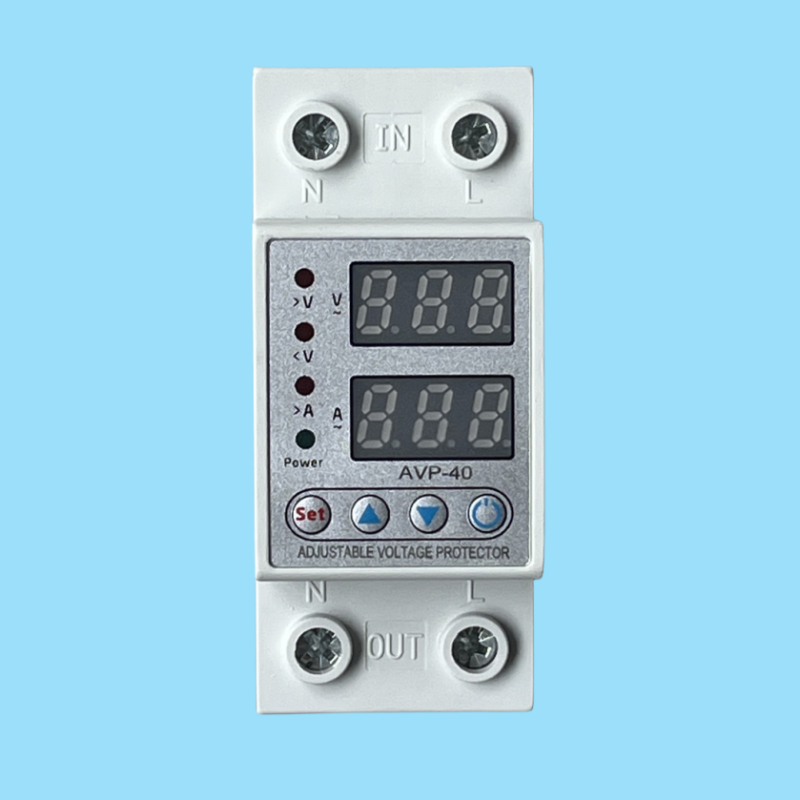

AVP digital display overvoltage and undervoltage protector
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Details Images
Protection performance: The AVP digital display overvoltage/undervoltage protector can detect abnormal voltage in a timely manner and take rapid protection measures to effectively prevent damage to electrical equipment. It can help extend the service life of electrical equipment.
High accuracy: AVP digital display overvoltage and undervoltage protectors typically have precise voltage monitoring and display functions, providing real-time voltage readings and allowing users to have a clear understanding of power grid conditions.
Versatility: In addition to overvoltage and undervoltage protection functions, some AVP digital display overvoltage and undervoltage protectors may also have other functions, such as overload protection, short circuit protection, overcurrent protection, etc., providing comprehensive electrical protection.
Easy to install and operate: AVP digital display overvoltage and undervoltage protectors usually have a simple installation and operation process, and users can set and adjust according to instructions.
