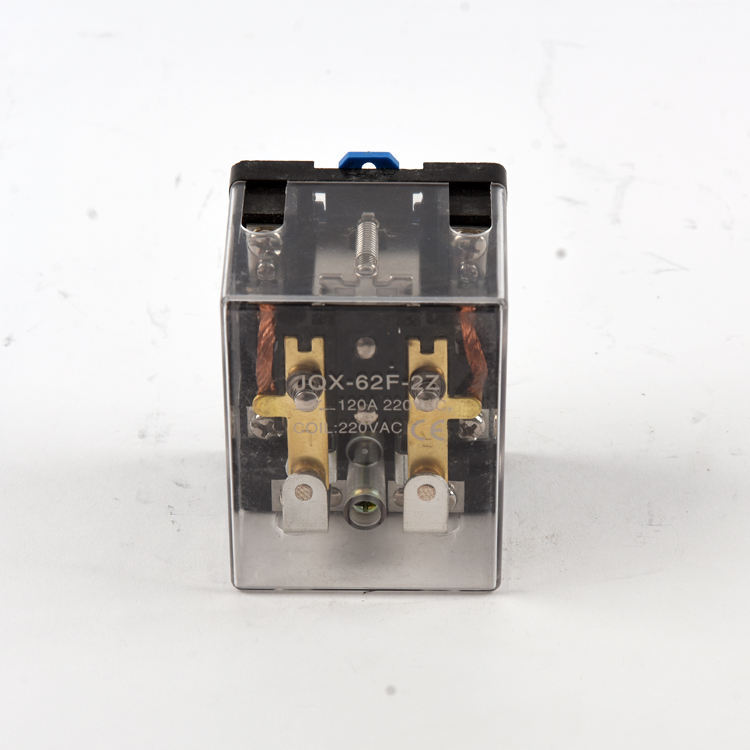

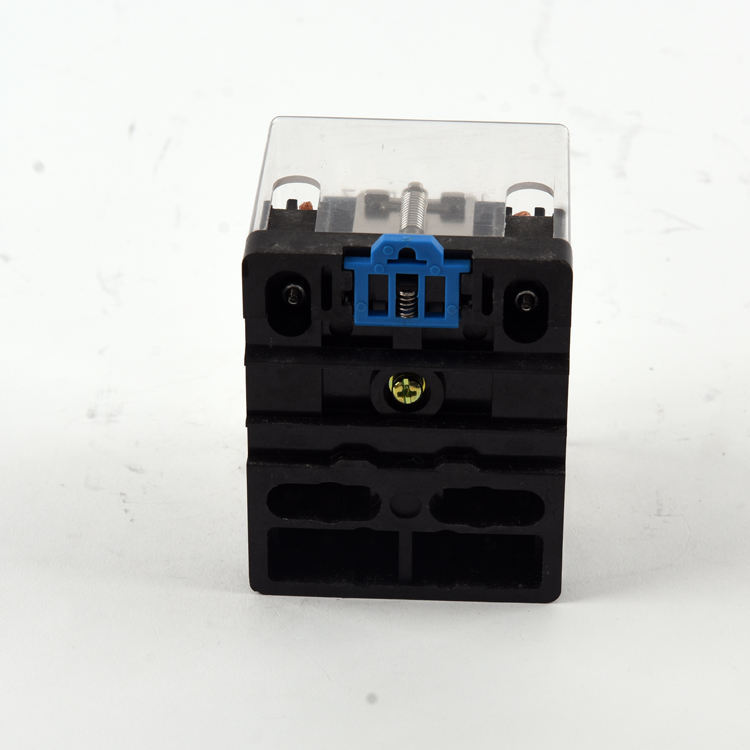

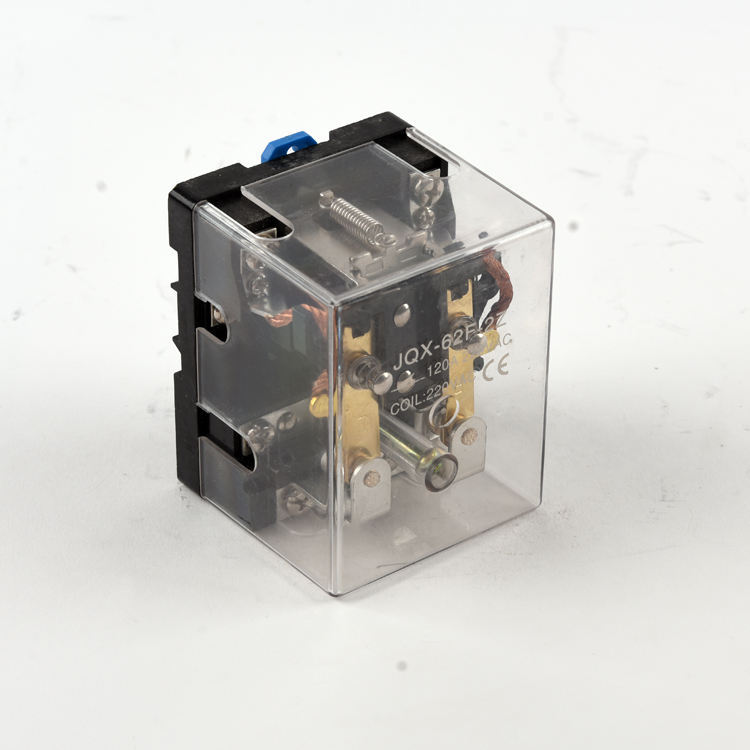

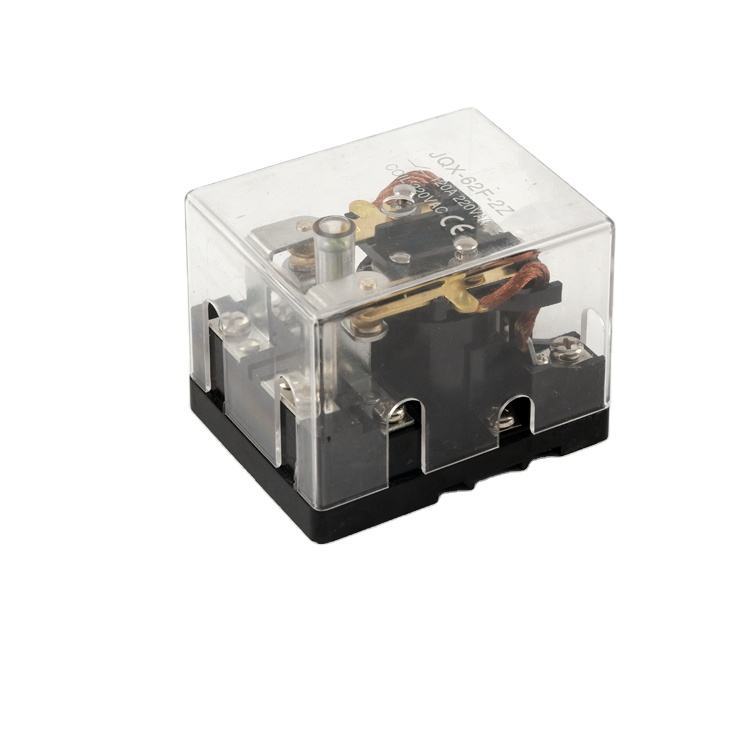

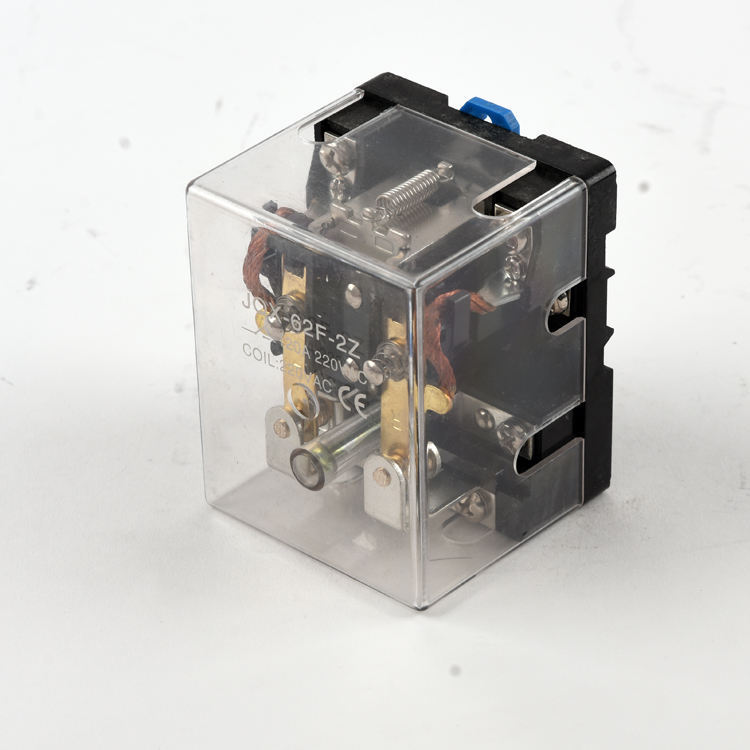

Durable Using Various Wholesale JQX-62F 2Z 80A Miniature Power Relay Dc Relay

Maximize your control systems with the Durable Using Various Wholesale JQX-62F 2Z 80A Miniature Power Relay. This DC Relay is a testament to reliability, designed for enduring use in various industrial applications. The JQX-62F 2Z offers an 80A power handling capacity, making it a robust choice for high-load operations. As a versatile control relay, it's your key to efficient and secure electrical switching. Choose our wholesale miniature power relay for a durable and high-quality solution that won't let you down.

  • KECN
  • WenZhou,China
  • 3days
  • To be negotiated
  • Information

Key attributes

Industry-specific attributes

Contact Load
High Power


Other attributes

Place of Origin
Zhejiang, China


Brand Name
KECN


Model Number
JQX-62F-2Z


Theory
Solid State Relay


Use
solvent printer


Protect Feature
Sealed


Coil voltage
5, 6, 9, 12, 24, 48, 60VDC; 12, 24, 110, 220VAC


Contact form
2Z,2H,2D


Contact resistance
≤100mΩ(1A 6VDC)


Contact material
AgCdO


Contact capacity
80A 250VAC/30VDC


Insulation resistance
≥1000MΩ.500VDC


Operate / Release Time
≤25ms/25ms


Terminal type
Screw mounting


Rated coil power
DC2.0W AC4VA

JQX-62F 2Z Miniature Relay

Introducing the Versatile and Durable JQX-62F 2Z 80A Miniature Power Relay

In today's fast-paced industrial world, reliability and durability are paramount. That's why we're proud to introduce the JQX-62F 2Z 80A Miniature Power Relay — a revolutionary solution that offers exceptional performance and unmatched durability.

The JQX-62F 2Z Miniature Relay is a compact yet powerful device that packs a punch. Its miniature design allows for easy integration into any industrial system, while its robust construction ensures it can handle the toughest environments.

When it comes to power, the 80A Power Relay capabilities of the JQX-62F 2Z are unmatched. With a maximum switching capacity of 80 amps, this relay can handle even the most demanding electrical loads with ease. Whether you're controlling motors, heaters, or other high-power devices, the JQX-62F 2Z has the power you need.

And because it's a DC Relay for Industrial Applications, the JQX-62F 2Z is perfect for a wide range of industrial automation systems. Whether you're working with conveyor belts, packaging machinery, or any other DC-powered equipment, this relay offers the precision and reliability you require.

But what really sets the JQX-62F 2Z apart is its Durable Electromagnetic Switch. Built with premium materials and precision engineering, this switch can withstand millions of cycles without fail. It's designed to last, ensuring your industrial system stays up and running for years to come.

And because it's a Versatile Control Relay, the JQX-62F 2Z can be used in a wide variety of applications. Whether you need to control a single device or an entire system, this relay offers the flexibility and versatility you need to get the job done.

In summary, the JQX-62F 2Z 80A Miniature Power Relay is the perfect choice for any industrial automation system. Its JQX-62F 2Z Miniature Relay design, 80A Power Relay capabilities, DC Relay for Industrial Applications functionality, Durable Electromagnetic Switch construction, and Versatile Control Relay versatility make it a must-have for any demanding application. Order yours today and experience the power and durability of the JQX-62F 2Z!

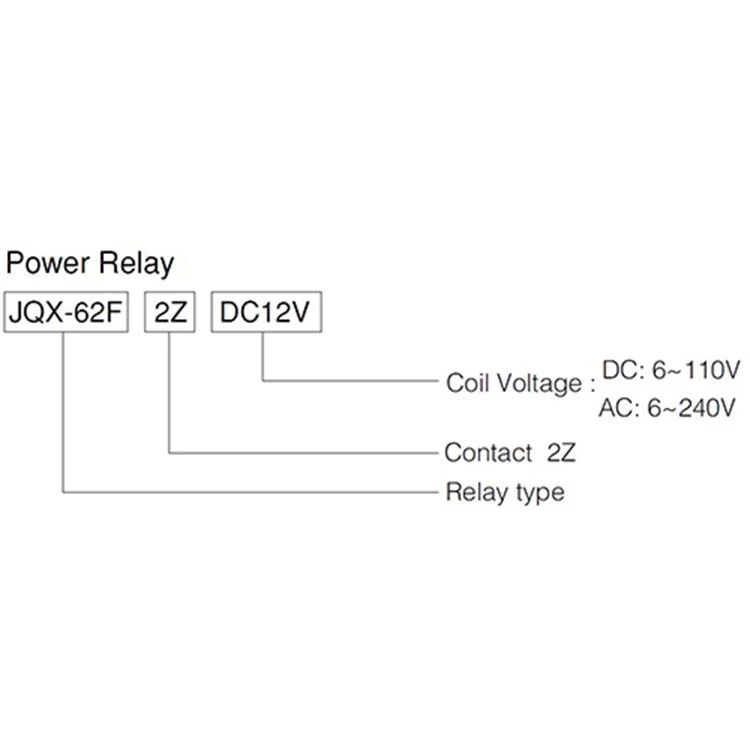

Power Relay: JQX-62 2Z
Coil voltage: 5, 6, 9, 12, 24, 48, 60VDC; 12, 24, 110, 220VAC
Contact Specification
Contact form
2Z, 2H, 2D
Contact resistance
≤100mΩ(1A 6VDC)
Contact material
AgCdO
Contact capacity
80A 250VAC/30VDC
Technical Specification
Insulation resistance
≥1000MΩ(500VDC)
Dielectric strength
BCC ≥2500VAC 1min

BOC ≥1200VAC 1min
Operate / Release time
≤25ms/25ms
Terminal type
Screw mounting
Coil Specification
Rated coil power
DC2.0W AC4VA
Coil Data
Nominal
voltage
Operate
voltage
Release
voltage
Coil
resistance
Nominal
voltage
Operate
voltage
Release
voltage
Coil
resistance
VDC
VDC
VDC
Ω±10%
VAC
VAC
VAC
Ω±10%
6
4.8
0.6
18
6
4.8
1.8
9
12
9.6
1.2
72
12
9.6
3.6
36
24
19.2
2.4
290
24
19.2
7.2
144
48
38.4
4.8
1152
48
38.4
14.4
576
60
48
6
1800
110
88
36
3250
110
88
11
6000
200/240
176
72
12000/14400

80A Power Relay

DC Relay for Industrial Applications

JQX-62F 2Z Miniature Relay

80A Power Relay

DC Relay for Industrial Applications

JQX-62F 2Z Miniature Relay

80A Power Relay

DC Relay for Industrial Applications

JQX-62F 2Z Miniature Relay

80A Power Relay

DC Relay for Industrial Applications

JQX-62F 2Z Miniature Relay

80A Power Relay

DC Relay for Industrial Applications
