Achieve precise timing control with the factory supplied Solid-State Timer H3CR-A8, a versatile time relay compatible with a wide voltage range from 24V to 48VAC100-240VAC. This 8-Pin Digital Timer is designed for reliability and flexibility, catering to various industrial applications. Engineered for efficiency, it offers a straightforward programming interface, making it easy to integrate into your systems. Upgrade your timing solutions with our H3CR-A8—precision and convenience in one solid-state package.

Brand: KECN
Product origin: WenZhou,China
Delivery time: 3days
Supply capacity: To be negotiated

Information

Key attributes

Industry-specific attributes

Contact Load

Low Power

Other attributes

Place of Origin

Zhejiang, China

Brand Name

KECN

Model Number

H3CR-A8 24-240VAC

Theory

Time Relay

Use

Time delay

Size

Miniature

Protect Feature

Sealed

time frame

1.2SEC-300HRS

Reset time

0.5

Dimension

45*45mm

Overall dimensions

48*48*82mm

Default voltage

220VAC DC(V):12,24,48 AC(V)24,50,110,220

Packaging and delivery

Packaging Details

Standard export packing or packing as your requirements

Port

NINGBO/SHANGHAI/GUANGZHOU/FUZHOU

Supply Ability

50000 Piece/Pieces per Month

Products Description

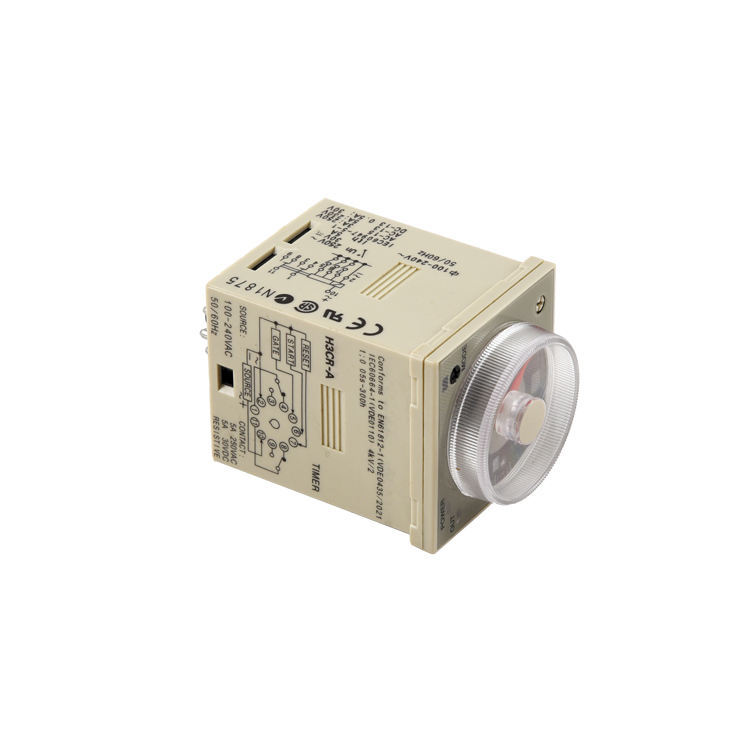

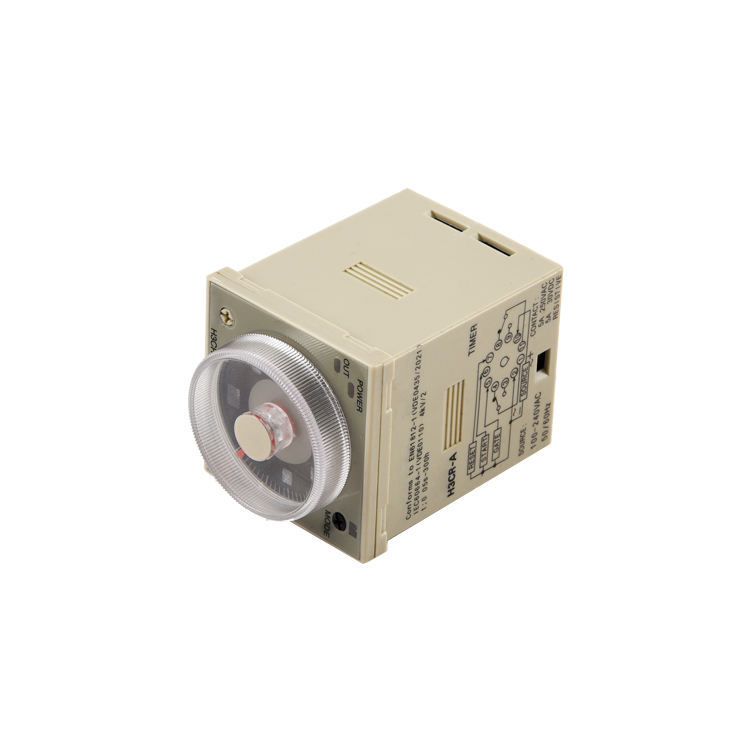

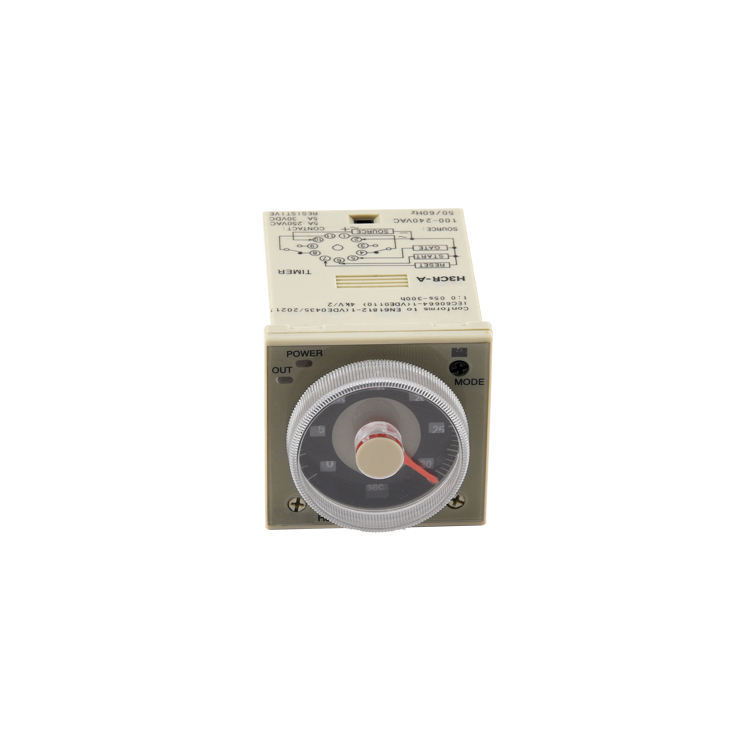

Solid-State Timer H3CR-A8

Introducing the Solid-State Timer H3CR-A8, a Factory supplied 24V-48VAC100-240VAC Time Relay designed for the most demanding industrial and commercial applications. This versatile 8-Pin Digital Timer is the epitome of precision and reliability, offering a wide range of voltage compatibility that makes it suitable for diverse electrical systems.

The H3CR-A8 is not just a time relay; it's a Programmable Time Controller that allows you to set custom timing sequences with ease. Its 8-Pin configuration ensures compatibility with a variety of control panels and systems, providing you with the flexibility needed for complex automation tasks.

Our High-Range Voltage Timer is built to handle inputs from 24V to 48VAC100-240VAC, making the H3CR-A8 Time Relay an ideal choice for applications that require a broad voltage range. This Solid-State Timer is engineered to deliver consistent performance, even in the most challenging environments.

Experience the future of time control with the H3CR-A8. As a Digital Timer that's both user-friendly and robust, it's the perfect addition to your control systems. The Factory supplied nature of our product guarantees quality and reliability, ensuring you receive a time relay that's built to last.

Sec ~ 300 Hrs Delay 5A @ 250VAC Socketable
The H3CR series Multi-range analogue timer is a time-limited type of timer. It have a variety of time setting ranges and voltages you can choose, it mainly used for equipment control.

Description
- Multi-range analogue timer
- Time setting range of 0.5s to 100h
- Wide operating voltage range in a single unit
- Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.
- 8 field-selectable output modes for various applications
-14 field-selectable time range, from 0.2 second to 300 hour
- Includes 2C output contacts, instantaneous output contact, flicker and interval modes
- Timing LED Indicates Output Relay Status

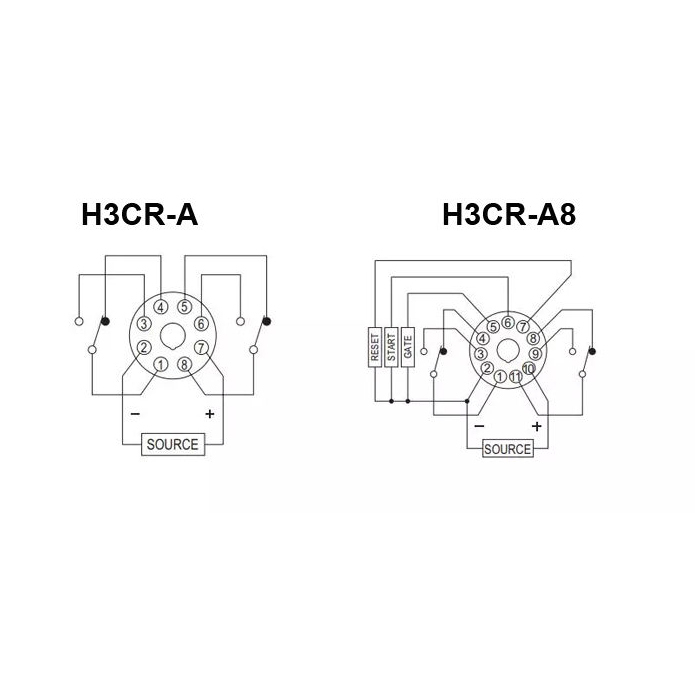

Product selection
Type	Mounting/Socket	Output contact	Time range
H3CR-A	Surface(-N): PS-08 Flush(-Y): US-08 P3G-08	2c	0.5Seconds-300Hours
H3CR-A8	Surface(-N): PF-113A(E) Flush(-Y): US-11	2c	0.5Seconds-300Hours

Technical Data
Type	H3CR
Operating voltage	100-240VAC / 100-125VDC
	24-48VDC / 12-48VDC
	DC(V):12,24
	AC(V):110,220
Allowable operating voltage range	85~110% of rated operating voltage
Rated frequency	50/60Hz
Indicator operating	Time operating flicker
Contact rating	250VAC 5A (resistive load)
Life	Mechanical 5×107times
Life	Electrical 1×105times
Accuracy	Repeat error ±1.0%max
	Setting error ±5.0%max
	Voltage error ±1.0%max
	Temperature error ±2.0%max
Reset time	Max 0.5sec
Insulation resistance	100MΩ(DC 500V)min
Dielectric strength	1500VAC
Power consumption	100-240VAC:1VA / 12VDC,24-240VDC:1.5W
Ambient temperature	-10℃~+55℃
Ambient humidity	35~85%RH
Weight	100g
Dimensions	48H×48W×81.6D

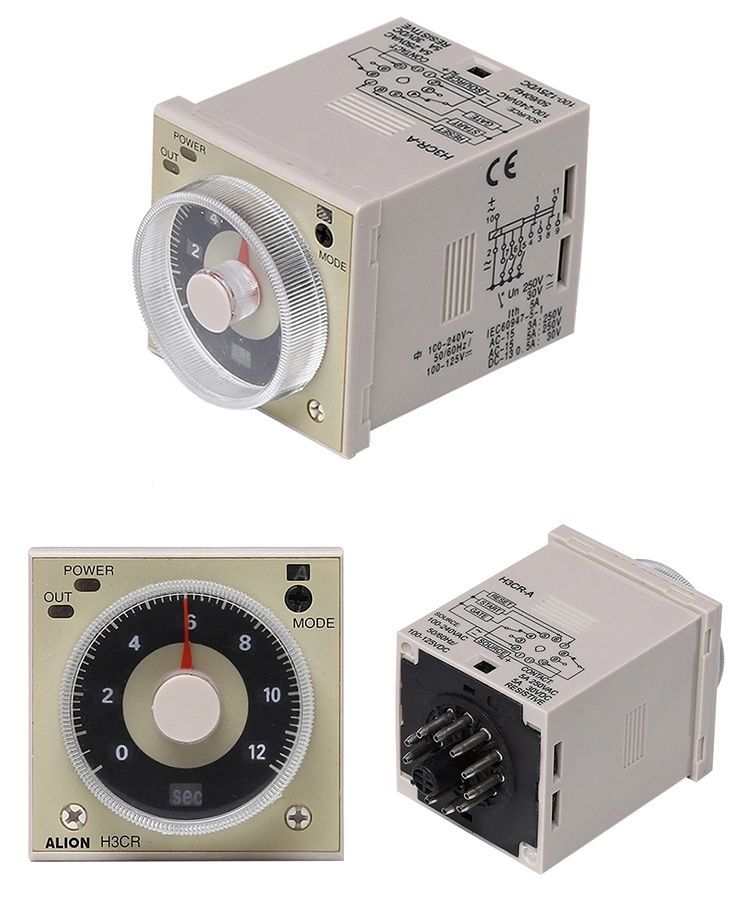

H3CR series time relay
delay time
Model number	Contact form	Delay time	Remark
H3CR-A	On-delay DPDT	1.2s-300h	100-240VAC
H3CR-A-24V	On-delay DPDT	1.2s-300h	24VDC
H3CR-A8	On-delay DPDT	1.2s-300h	100-240VAC
H3CR-A8-DA	On-delay DPDT	1.2s-300h	24-220VAC/24-220VDC
H3CR-A8E	On-delay SPDT with SPDT instantaneous	1.2s-300h

24V-48VAC100-240VAC Time Relay

8-Pin Digital Timer

Solid-State Timer H3CR-A8

24V-48VAC100-240VAC Time Relay

8-Pin Digital Timer

Solid-State Timer H3CR-A8

24V-48VAC100-240VAC Time Relay

8-Pin Digital Timer

Solid-State Timer H3CR-A8

24V-48VAC100-240VAC Time Relay

8-Pin Digital Timer
