Key attributes
Industry-specific attributes
Other attributes
Indicator Operating
Two LED's use for two status
Second Voltage
8VAC(excep high sensing 24VAC)
Contact Rating
5A,250VAC(Resistive load)
Packaging and delivery
Packaging Details
Standard export packing or packing as your requirements
Port
NINGBO/SHANGHAI/GUANGZHOU/FUZHOU
Supply Ability
Supply Ability
50000 Piece/Pieces per Month

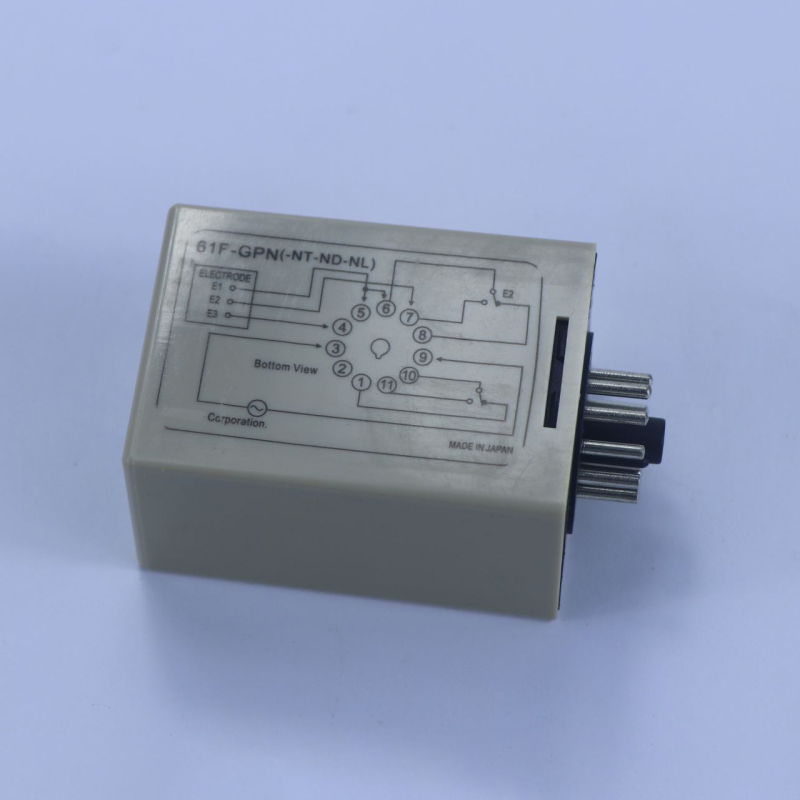

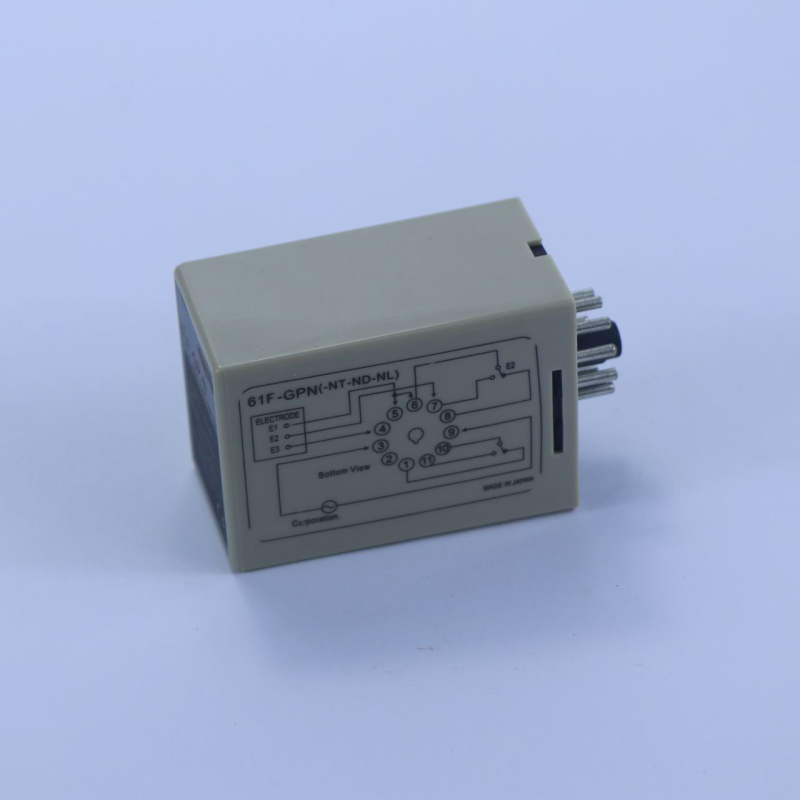

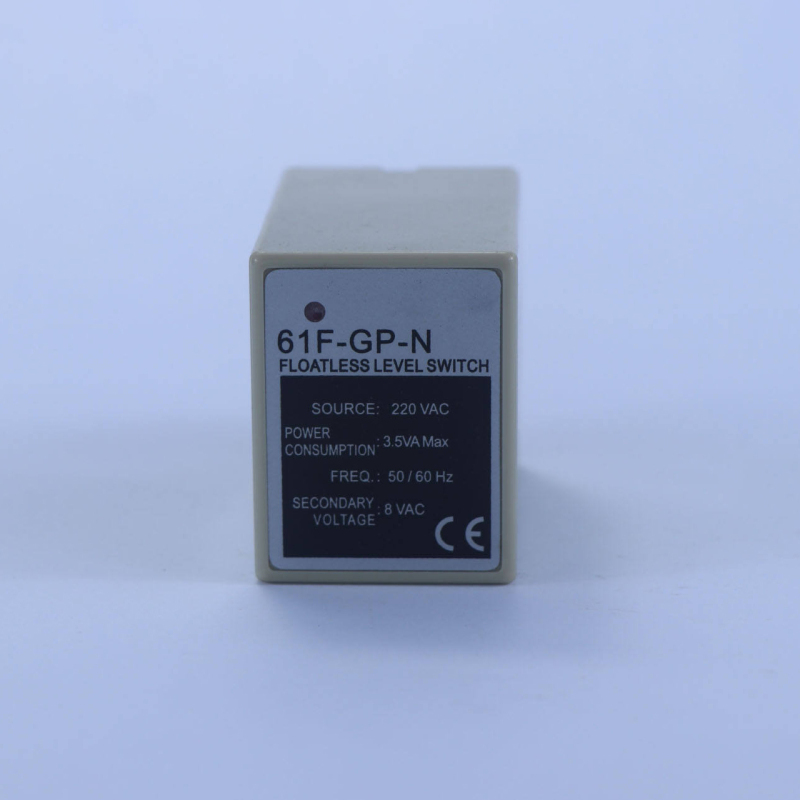

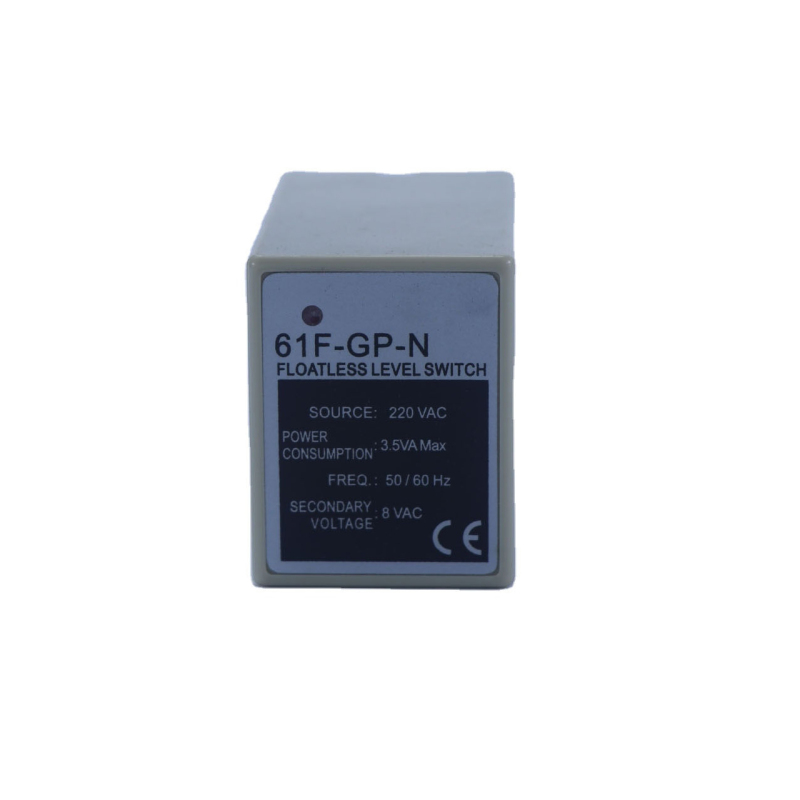

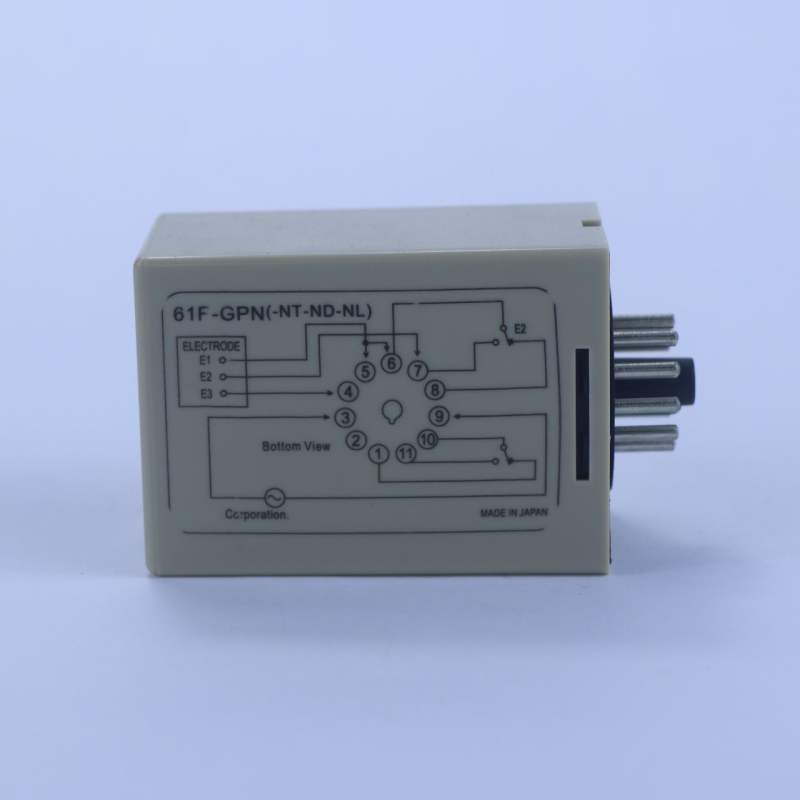

Introducing the Manufacturer's Direct Liquid Level Controller, a precision-engineered solution for your fluid management needs. Our 61F-GP-N/61F-GP-N8 is more than just a device; it's an Industrial Level Control System designed to provide reliable and accurate control across various applications.
The 61F-GP-N/61F-GP-N8 Liquid Level Controller is equipped with a 220VAC Level Sensor that ensures high-voltage compatibility, making it a robust choice for your industrial processes. This feature-rich controller doesn't stop there; it also offers 110VAC Level Monitoring, allowing for versatile integration into different electrical systems, providing you with the flexibility you need.
Furthermore, the 61F-GP-N/61F-GP-N8 excels in 24VAC Water Level Control, making it an ideal solution for environments where lower voltage operation is required. Its adaptability to different voltage levels, such as 220VAC, 110VAC, and 24VAC, positions it as a truly universal Industrial Level Control System.
Whether you're managing water levels in a large tank or monitoring fluid levels in a complex industrial setup, our Liquid Level Controller guarantees consistent performance. The 61F-GP-N/61F-GP-N8 is not just a sensor; it's your partner in maintaining optimal fluid levels, reducing the risk of overflows or shortages.
Experience the efficiency and reliability of our Manufacturer's Direct Liquid Level Controller. Invest in the 61F-GP-N/61F-GP-N8 for a future where your water level control is precise, adaptable, and dependable.
Description
- Can be used in building buildings, integrated community residential buildings, sewers,
as well as agricultural water, water purification, sewage treatment plants,
the General Factory of a variety of liquid level treatment, the use of a wide range of.
- Ideal for level control of any conductive liquid
- Automatic Water Supply and Drainage Control
- Power Supply
Non universal voltage: AC(V)110 -120, 220 -240 50/60Hz .
- Contact output: 5 A at 250 VAC/30 VDC, resistive load .
- Independent DPDT contacts on 11-Pin Models.
- Water level probe with PS-3S
- Incorporates an arrester for surge and induced lightning protection

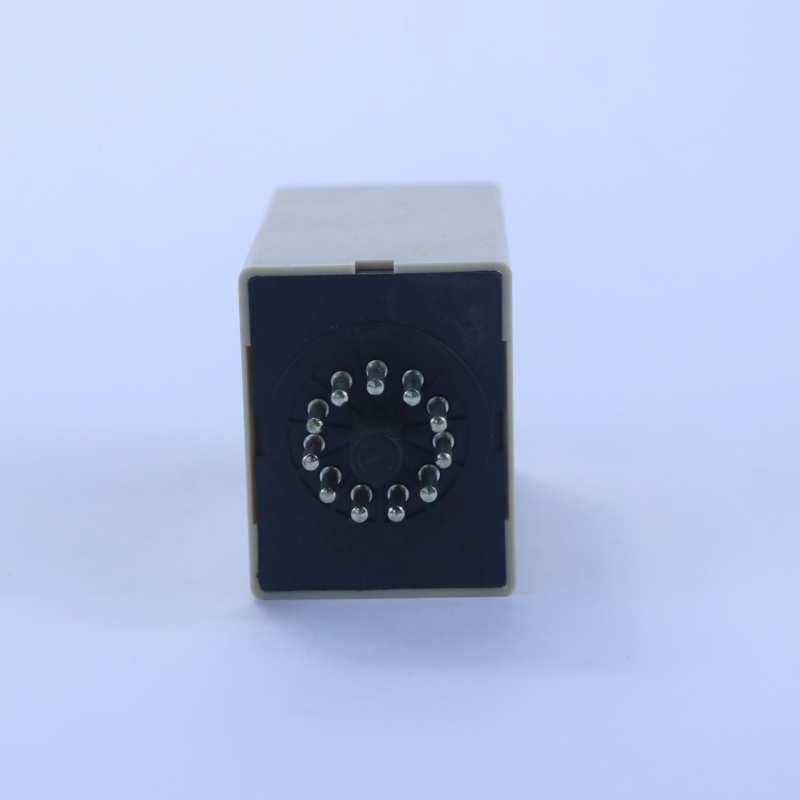

- Socket mounted with a PF113A(E) Socket
- With one LED action shows that the status of its action at a glance.
Technical Data |
|
Type | 61F-GP-N |
Dimensions (mm) | 50H×40W×70D |
Socket type | Two lines |
Rated voltage AC | 110V,220V,240V,50/60HZ |
Indicator operating | One LED’s use for one status |
Operate voltage | 85~110% of rated voltage |
Second voltage | 8VAC(excep high sensing 24VAC) |
Operate Resistance | 4 KΩ min General |
Release resistance | 15 KΩ min General |
Response time | Operate:80msec max, Release:160 msec max |
Contact rating | 5A,250VAC(Resistive load) |
Mechanical Life | 5×106times |
Electrical Life | 105times |
Insulation resistance | 100MΩ(DC 500V)min |
Dielectric strength | 1500VAC,50/60HZ |
Consumed power | 3.2VA |
Ambient temperature | -10℃~+55℃ |
Ambient humidity | 48~85%RH |
Weight | 150g |
Length of cable | 1Km max.(General) |
