ST3PA-A/B/C/D/E/F full series time relay control AC 220V
>

ST3PA-A/B/C/D/E/F full series time relay control AC 220V

ST3PA-A/B/C/D/E/F full series time relay control AC 220V

Synchronize your operations with the ST3PA-A/B/C/D/E/F Full Series Time Relay Control, designed for AC 220V applications. This comprehensive timing device offers a complete solution for all your automation needs, ensuring precise control and timing accuracy. Engineered for reliability and versatility, the ST3PA series is your key to optimizing industrial processes. Make the upgrade to our full series electrical time controller and experience the difference in your automation timing solution.

Brand: KECN
Product origin: WenZhou,China
Delivery time: 3days
Supply capacity: To be negotiated

Information

Key attributes

Industry-specific attributes

Contact Load

Low Power

Other attributes

Place of Origin

Zhejiang, China

Brand Name

KECN

Model Number

ST3P A-A B C D E

Theory

Time Relay

Use

Industrial equipment/automation equipment

Size

Miniature

Protect Feature

Sealed

Model

ST3P series

way of working

Power on delay

Working current

30A

Dimensions

55H*40.5W*57.5D

Dielectric strength

1500VAC

Reset time

0.5sec max

ambient temperature

-5℃~+40℃

sulation resistance

100MΩ(DC 500V)min

Ambient humidity

35~85%RH

Thermal current

Packaging and delivery

Packaging Details

Standard export packing or packing as your requirements

Port

NINGBO/SHANGHAI/GUANGZHOU/FUZHOU

Supply Ability

50000 Piece/Pieces per Month

Products Description

ST3PA-A/B/C/D/E/F Time Relay

Unleash the full potential of time-based control with the ST3PA-A/B/C/D/E/F Time Relay, a comprehensive series designed for precise electrical management. The AC 220V Control Relay in our Full Series Timing Device lineup is engineered to deliver unwavering performance in a variety of applications.

The ST3PA-A/B/C/D/E/F Time Relay is not just a component; it's an Electrical Time Controller that offers you the power to automate and schedule processes with pinpoint accuracy. This 220V Power Time Relay is built to handle the rigors of industrial environments while ensuring reliable and consistent operation.

Our Full Series Timing Device is your one-stop solution for time relay needs, providing a complete set of options to fit any project or system requirement. The versatility of the ST3PA-A/B/C/D/E/F Time Relay makes it the ideal choice for applications where precise timing and control are paramount.

The AC 220V Control Relay within this series is designed for easy integration into existing electrical systems, offering a seamless upgrade to your control capabilities. With the Electrical Time Controller functionality of the ST3PA-A/B/C/D/E/F Time Relay, you can expect a robust and dependable performance that won't let you down.

Experience the future of timing control with our ST3PA-A/B/C/D/E/F Time Relay. Invest in a Full Series Timing Device that combines reliability, precision, and versatility, all in one powerful package.

Product feature:
1. Integrated type internal structure
2.Standard external structure
3.Adjusting set-up simplifying type
4. Multifunction model Multi type

Product advantages

1. Wide delay range, 4-segment delay range, high delay repetition accuracy 2. Power plants/metallurgical and petrochemical industries/urban construction and transportation are safer. 3. Good anti-interference performance and strong reliability. 4. Flame retardant shell, with longer service life.

Classification		Timer	Multi Range Timer
Model		ST2P	ST3P
Dimensions(mm)		50H×40W×57.5D	50 H×40.5W×57.5 D

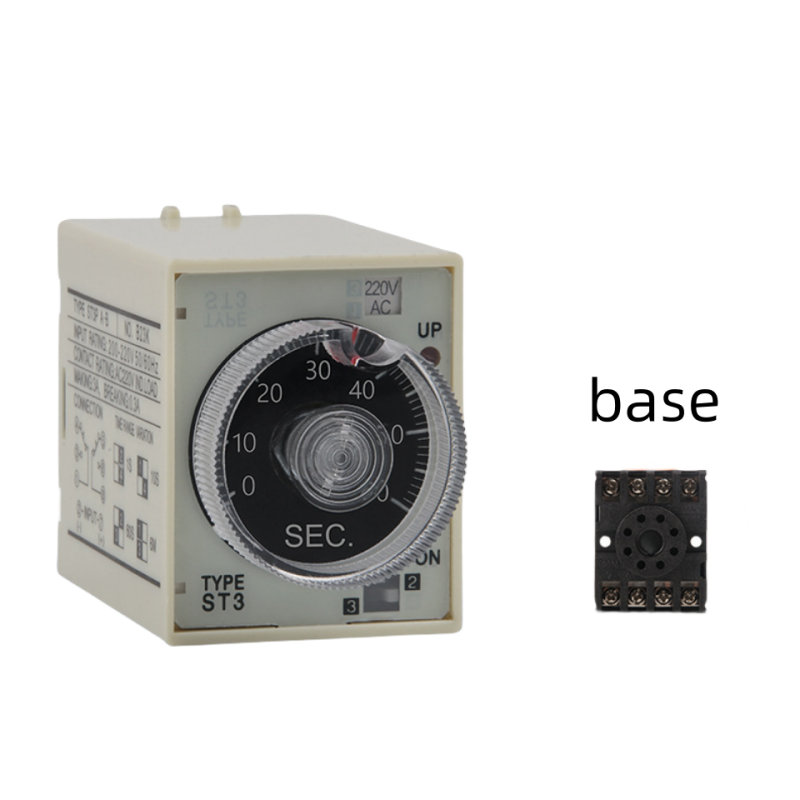

Mounting & Socket	Surface(-n)	PF083A(E)	PF-083A(E)
	Flush(-y)	US-08 P3G-08	US-08 P3G-08

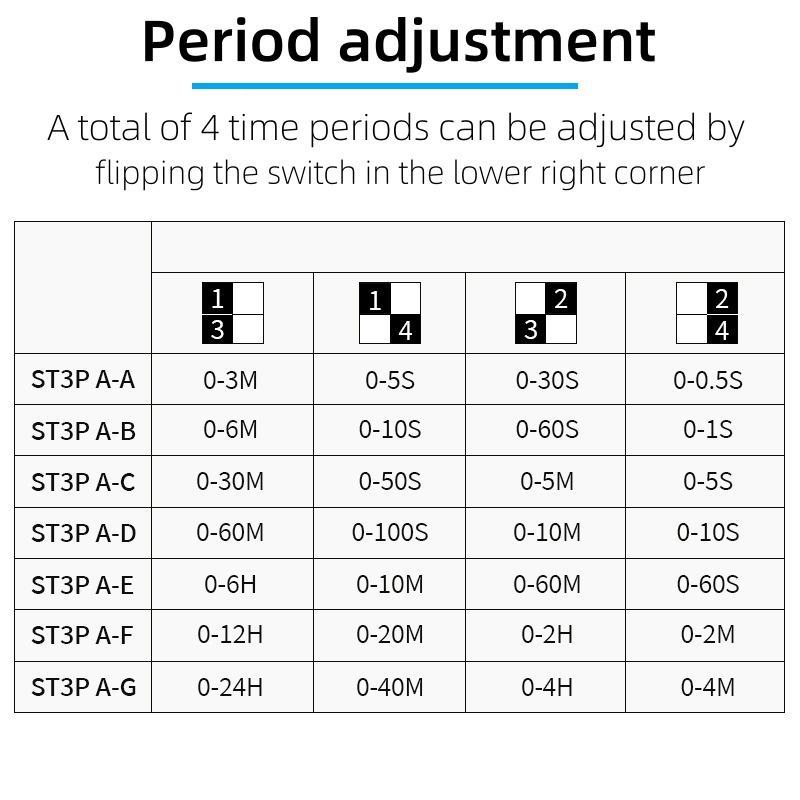

Full Timing Range		SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30	A:0.05-0.5s/5s/30s/3min B:0.1-1s/10s/60s/6min C:0.5s/5s/50s/5min/30min D:1-10s/100s/10min/60min E:5-1min/10/60min/6h F:0.25-2min/20min/2h/12h G:0.5-4min/40min/4h/24h
Rated Voltage		AC (V):12,24,110,220 50/60Hz DC(V):12-24(50/60Hz)	24 to 240 VAC/DC AC(V)110V,220V DC(V)12V,24V
Indicator Operating		ON-UP Operating	ON-UP Operating
O/P Contact	Model	ST2P-E	ST3PA	ST3PC
	Time Limit 1C	5A		5A
	Time Limit 2C		5A
	Instantenous 1C	5A		5A
Life	Mechanical	5×107times	5×107times
	Electrical	105times	105times
Accuracy	Repeat Error	±1%max	±1%max
	Setting Error	±10%max	±10%max
	Voltage Error	±1%max	±1%max
	Temp. Error	±2%max	±2%max
Reset Time		0.5 sec max	0.5 sec max

AC 220V Control Relay

Full Series Timing Device

ST3PA-A/B/C/D/E/F Time Relay

AC 220V Control Relay

Full Series Timing Device

ST3PA-A/B/C/D/E/F Time Relay

AC 220V Control Relay

Full Series Timing Device

ST3PA-A/B/C/D/E/F Time Relay

AC 220V Control Relay

Full Series Timing Device

ST3PA-A/B/C/D/E/F Time Relay

AC 220V Control Relay

Full Series Timing Device

ST3PA-A/B/C/D/E/F Time Relay

AC 220V Control Relay

Full Series Timing Device
