Key attributes
Industry-specific attributes
Other attributes
Minimum Time set Interval
Packaging and delivery
Packaging Details
Standard export packing or packing as your requirements
Port
NINGBO/SHANGHAI/GUANGZHOU/FUZHOU
Supply Ability
Supply Ability
50000 Piece/Pieces per Month

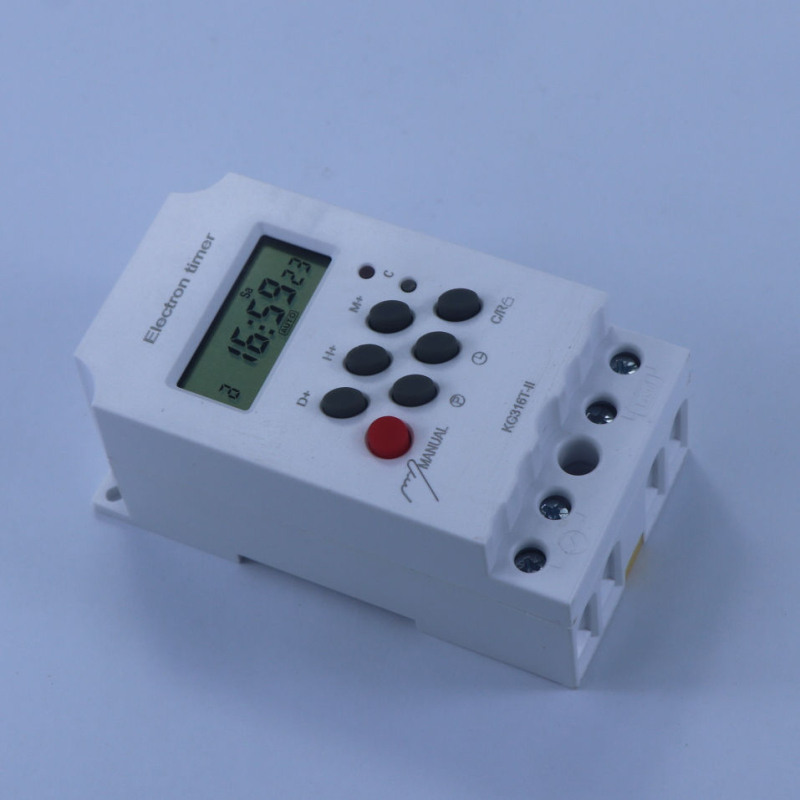

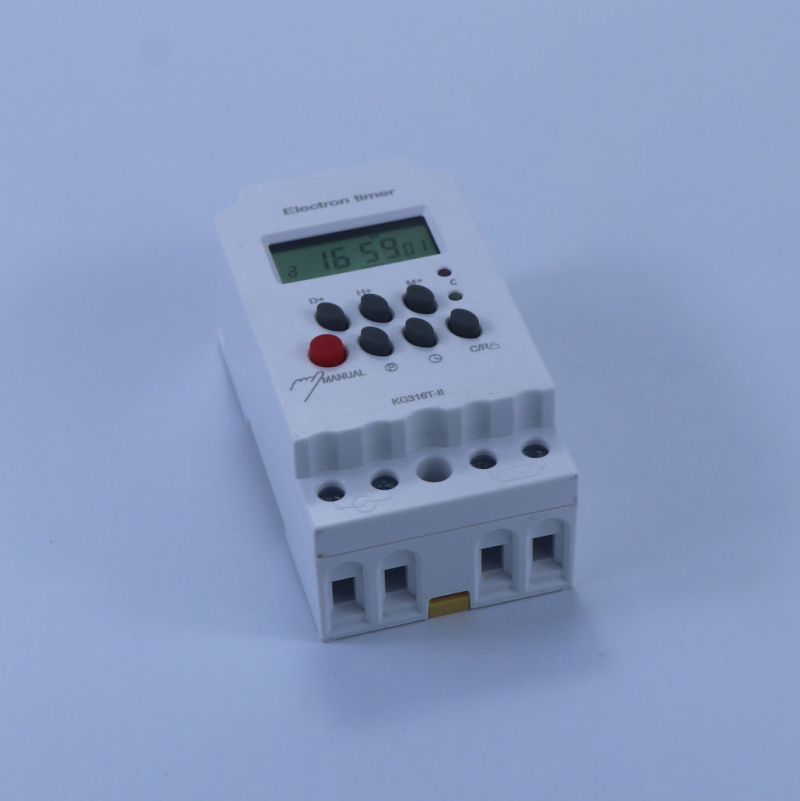

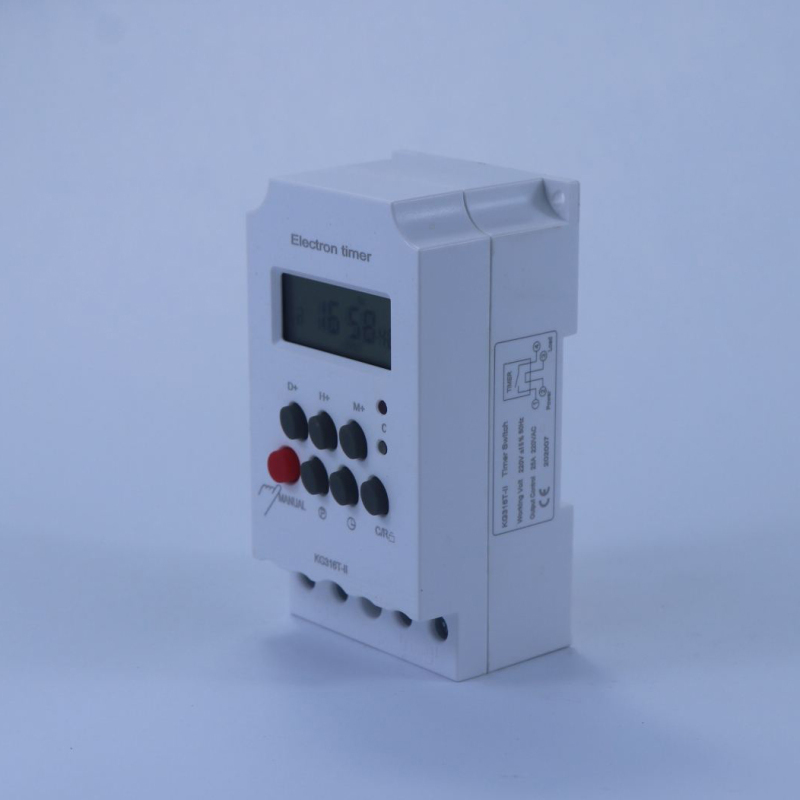

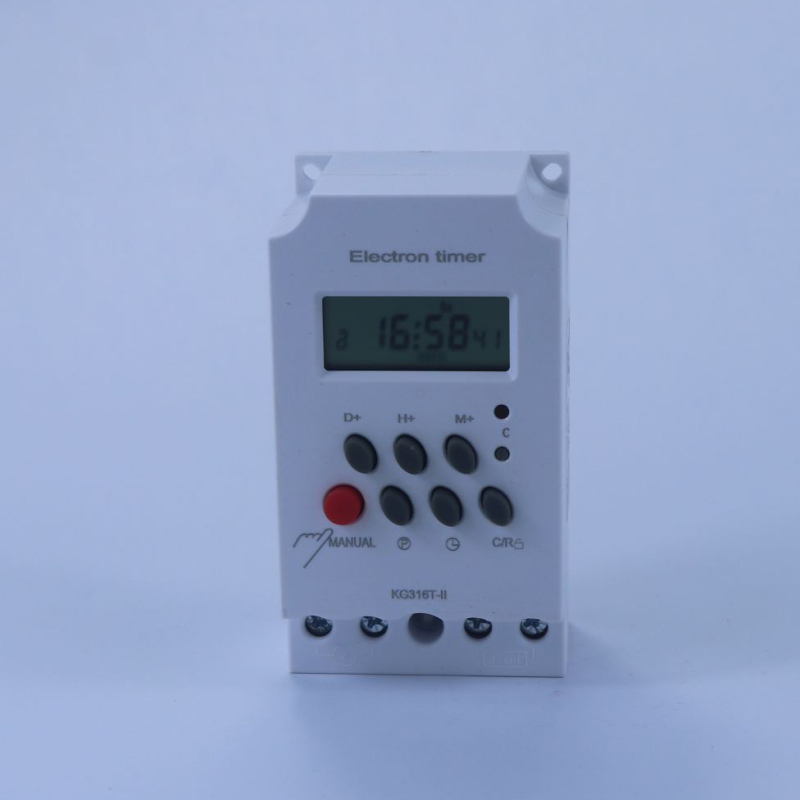

Discover the ultimate in compact timing with the KG316T-II Mini Time Switch, a Small Time Control Switch that's quickly becoming the industry standard. Our Manufacturers directly provide these Widely Used Timer Switches, ensuring top-tier quality and reliability in every unit.
The KG316T-II Mini Time Switch is a Miniature Programmable Timer that's designed for a multitude of applications, from industrial processes to home automation. Its Compact Time Management Device status is a testament to its ability to deliver precise control in a small form factor.
As a Small Time Control Switch, the KG316T-II offers a user-friendly interface that makes programming a breeze. Whether you need a simple on-off timer or a complex time-lapse sequence, this Mini Time Switch has you covered.
The Widely Used Timer Switch reputation of the KG316T-II is built on its versatility and durability. It's a go-to choice for professionals who demand only the best in timing accuracy and dependability.
For those seeking a Miniature Programmable Timer that doesn't compromise on functionality, the KG316T-II is the answer. Its Compact Time Management Device design ensures that you can install it in tight spaces without sacrificing performance.
Make the smart choice for your timing needs and choose the KG316T-II Mini Time Switch. Experience the convenience and precision of a Small Time Control Switch that's backed by a direct manufacturer's commitment to excellence.
1. Digital time switch with weekly program and day cycle
2. 20 groups on-off program
a. Can Switching preselection
b. Can manually to control on-off
3. 20 times pulse programs
a. Adjustable pulse duration 1s~59m59s
4. Countdown
a. Adjustable Countdown duration 1s~99m59s
5. 1 channel
6. Screw terminals
7. Preset date and time
a. LCD Display
b. Can manually set Daylight Saving Time(1 Hours)
c. 12/24 hour format conversion
d. Can autocorrect time(-30 sec ≤t≤30 sec) weekly
8. Built-in lithium battery, and travel time as usual after power failure
a. Fully operable without mains connection
9. Integrated operating hour counter and action times
roduct TypeVoltageFrequencyTerminalSwitching capacity
AHC15A-220/50Hz-16A
220V
50Hz516A
AHC15A-220/60Hz-16A220V60Hz516A
AHC15A-110/50Hz-16A110V50Hz516A
AHC15A-110/60Hz-16A110V60Hz516A
AHC15A-12V-16AAC/DC 12VAC 50/60Hz516A
AHC15A-24V-16AAC/DC 24VAC 50/60Hz516A
AHC15A-220/50Hz-3P 20A220V50Hz320A
AHC15A-220/50Hz-5P 20A220V50Hz520A
AHC15A-220/60Hz-3P-20A220V60Hz320A
AHC15A-220/60Hz-5P-20A220V60Hz520A
AHC15A-110/50Hz-3P-20A110V50Hz320A
AHC15A-110/50Hz-5P-20A110V50Hz520A
AHC15A-110/60Hz-3P-20A110V60Hz320A
AHC15A-110/60Hz-5P-20A110V60Hz520A
AHC15A-12V-20AAC/DC 12VAC 50/60Hz520A
AHC15A-24V-20AAC/DC 24VAC 50/60Hz520A
Times of switch setting20 groups
pulse programs20 times
pulse time1s~59m59s
Count down1s~99m59s
Operating voltage220V/110V
Frequency50Hz/60Hz
Width2 modules

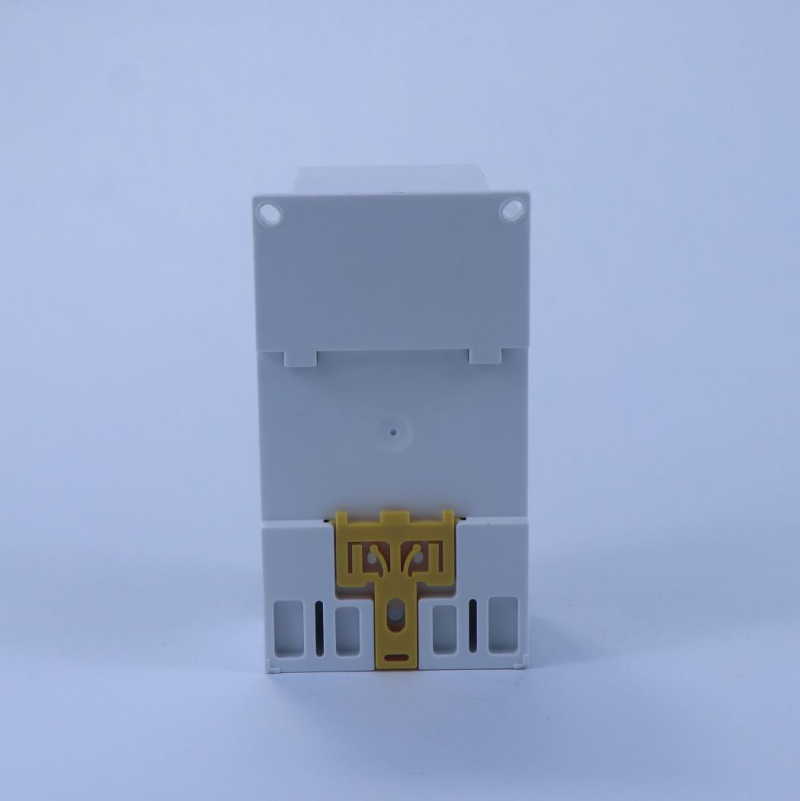

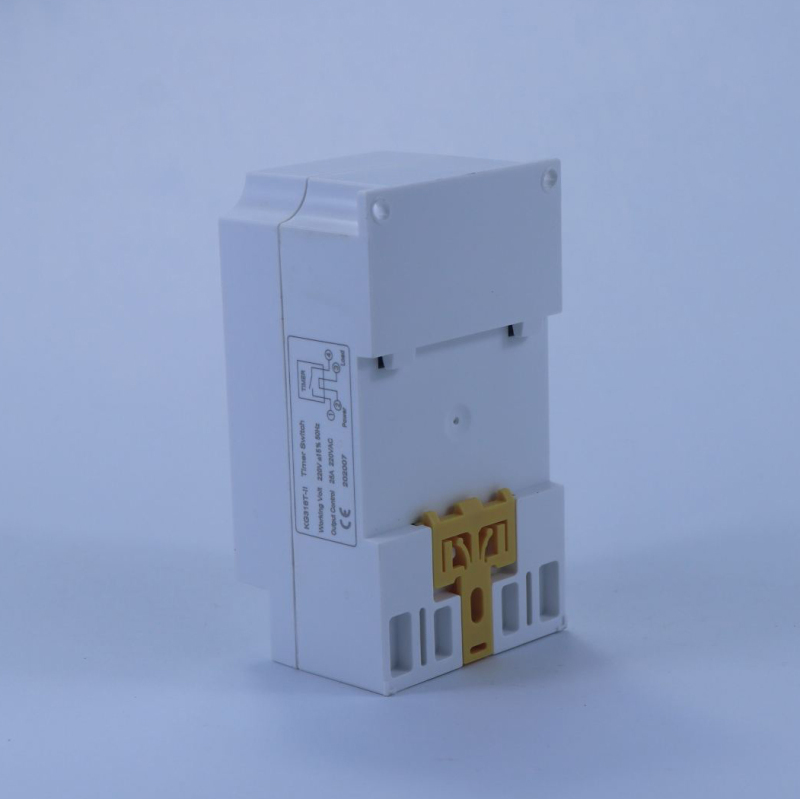

Installation typeDin rail
Terminal Quantity5
Type of contactChangeover contact
Switching outputPhase-independent
Method of connection terminalScrew terminals
Power reserve3 years
Switching capacity at 250 V AC, cos φ = 116A
Switching capacity at 250 V AC, cos φ = 0,610A
Incandescent/halogen lamp load 230V2600W
Energy saving lamps170W
LED lamp < 2 W
30W
LED lamp 2–8 W100W
LED lamp > 8 W120W
Fluorescent lamp load (electronic ballast)650W
Fluorescent lamp load (conventional) not corrected1000VA
Fluorescent lamp load (conventional)series-corrected1000VA
Fluorescent lamp load (conventional)parallel-corrected730 VA 80μF
Time accuracy at 25 °Ctypical ± 2 s/day (quartz)
Consumed power4VA
Test approvalCE
Type of protectionIP20
Protection classII according to EN 60 730-1
Housing and insulation materialHigh-temperature resistant, self-extinguishing thermoplastic
Work temperature-10 ~ +50 °C (non-icing)
Ambient humidity35~85RH
Application:
Timer switch is a kind of time-controller, mainly applied in controlling variety
of electrical equipment automatically in a cycling way.
It’s easy to operate, and widely used in controlling system, such as mechanical equipments,advertisements lamp box, breeding, irrigation,Lighting, water heater,agriculture facilities, broadcasting equipment, home appliance, etc.
Specifications |
Rated voltage | 110/220VAC |
Frequency | 50HZ/60HZ |
Power Consumption | 1.5W |
Driving method | AC Synchronous motor |
Load Capacity | 16(10)A 220V |
Minimum Time set Interval | 15 Minutes |
Ambient Temperature | -10℃~+50℃ |
Ambient Humidity | Below 85% |
Size | 72×72×53mm |
