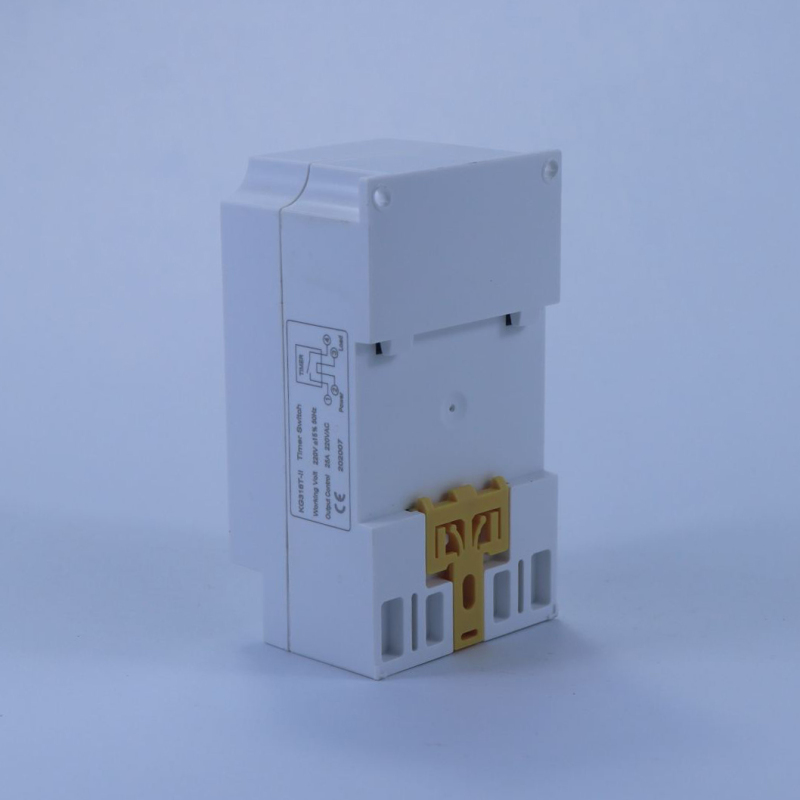

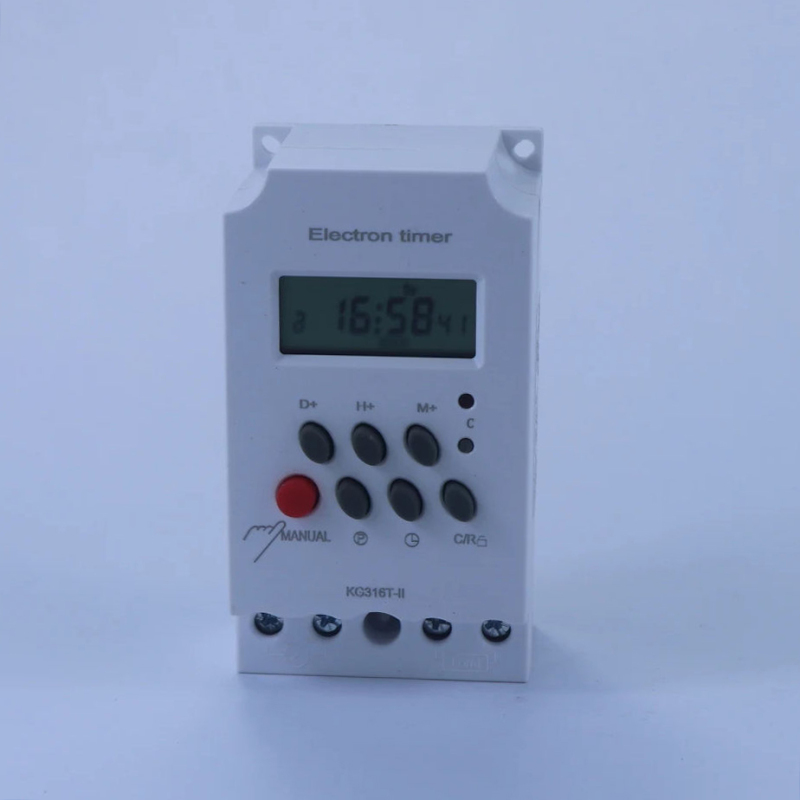

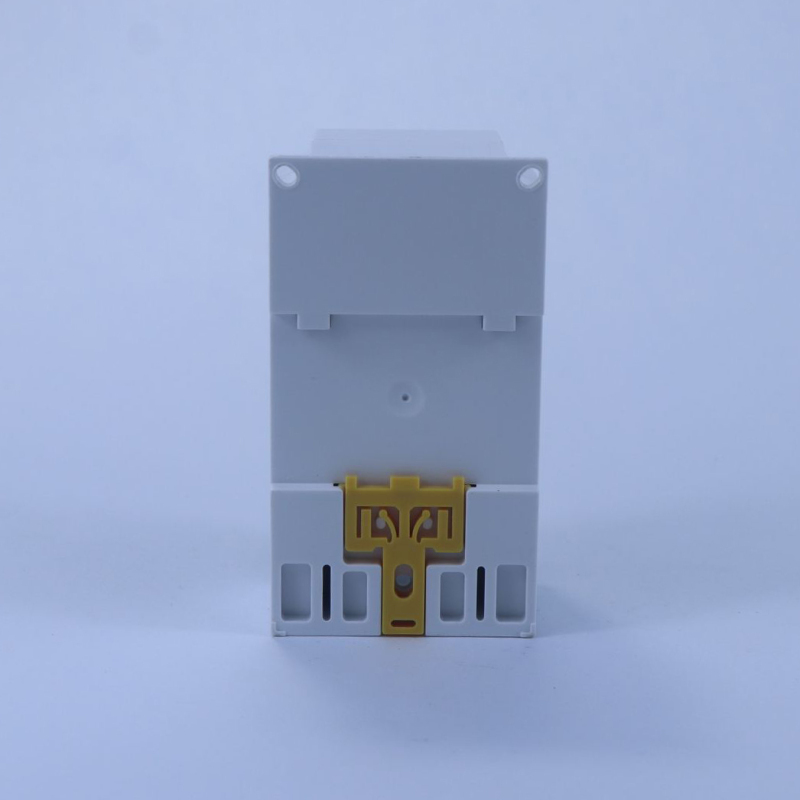

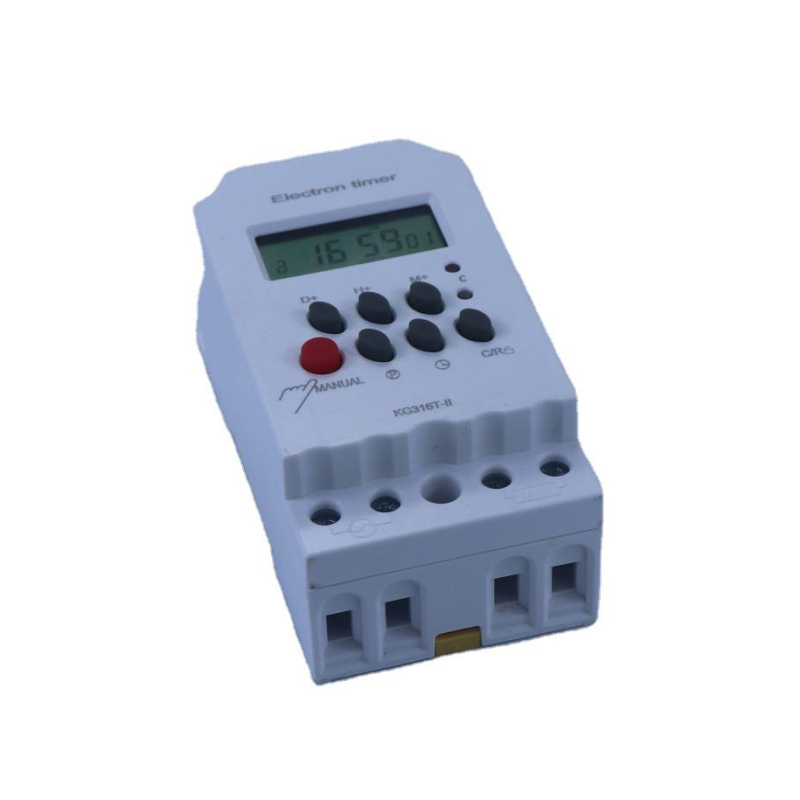

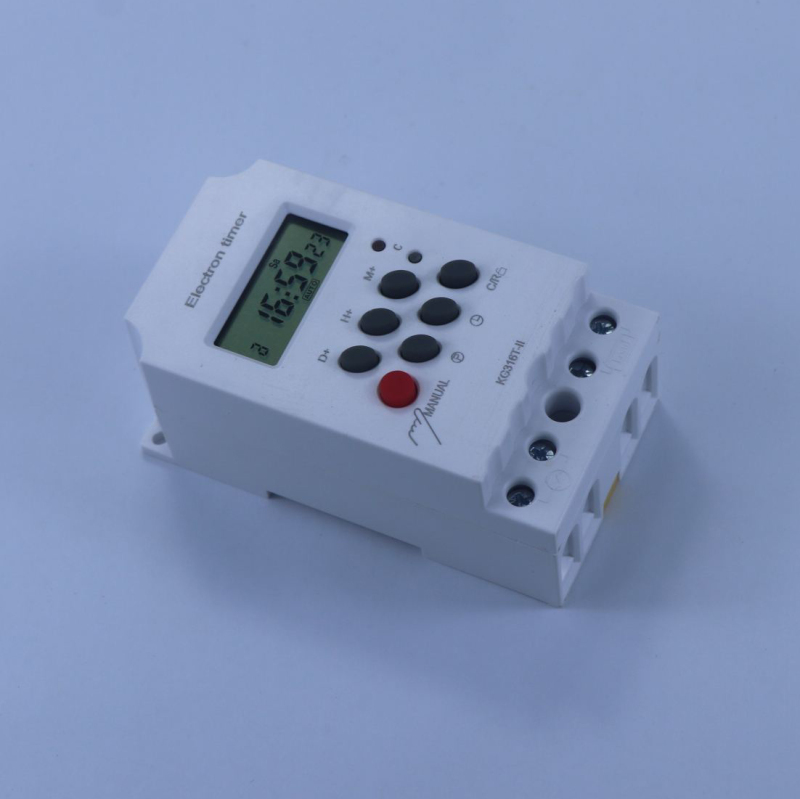

Introducing the KG316T-II Timer Switch, a 220V Power Controller that redefines electric time management. This DIN-Rail Mounted Timer is designed for seamless integration into your existing electrical infrastructure, providing a robust solution for all your timing needs.
The KG316T-II is not just a timer switch; it's an LCD Micro-Computer Timer that combines the convenience of a digital display with the precision of micro-computer control. This Electric Time Controller is your key to optimizing energy usage and enhancing process efficiency.
As a 220V Power Controller, the KG316T-II is built to handle the demands of high-voltage applications, ensuring consistent and reliable performance. The DIN-Rail Mounted Timer feature allows for easy installation and adjustment, making it a space-saving choice for your control panels.
Our Electric Time Controller is equipped with a user-friendly interface, allowing you to set and monitor timers with ease. The inclusion of a clock function makes the KG316T-II more than just a timer—it's a comprehensive time management solution.
Whether you're looking to automate lighting, control HVAC systems, or manage power to sensitive equipment, the KG316T-II Timer Switch is the answer. Experience the power of precision with an Electric Time Controller that's designed to meet the highest standards of reliability and efficiency.
1. Digital time switch with weekly program and day cycle
2. 20 groups on-off program
a. Can Switching preselection
b. Can manually to control on-off
3. 20 times pulse programs
a. Adjustable pulse duration 1s~59m59s
4. Countdown
a. Adjustable Countdown duration 1s~99m59s
5. 1 channel
6. Screw terminals
7. Preset date and time
a. LCD Display
b. Can manually set Daylight Saving Time(1 Hours)
c. 12/24 hour format conversion
d. Can autocorrect time(-30 sec ≤t≤30 sec) weekly
8. Built-in lithium battery, and travel time as usual after power failure
a. Fully operable without mains connection
9. Integrated operating hour counter and action times
roduct TypeVoltageFrequencyTerminalSwitching capacity
AHC15A-220/50Hz-16A
220V
50Hz516A
AHC15A-220/60Hz-16A220V60Hz516A
AHC15A-110/50Hz-16A110V50Hz516A
AHC15A-110/60Hz-16A110V60Hz516A
AHC15A-12V-16AAC/DC 12VAC 50/60Hz516A
AHC15A-24V-16AAC/DC 24VAC 50/60Hz516A
AHC15A-220/50Hz-3P 20A220V50Hz320A
AHC15A-220/50Hz-5P 20A220V50Hz520A
AHC15A-220/60Hz-3P-20A220V60Hz320A
AHC15A-220/60Hz-5P-20A220V60Hz520A
AHC15A-110/50Hz-3P-20A110V50Hz320A
AHC15A-110/50Hz-5P-20A110V50Hz520A
AHC15A-110/60Hz-3P-20A110V60Hz320A
AHC15A-110/60Hz-5P-20A110V60Hz520A
AHC15A-12V-20AAC/DC 12VAC 50/60Hz520A
AHC15A-24V-20AAC/DC 24VAC 50/60Hz520A
Times of switch setting20 groups
pulse programs20 times
pulse time1s~59m59s
Count down1s~99m59s
Operating voltage220V/110V
Frequency50Hz/60Hz
Width2 modules
Installation typeDin rail
Terminal Quantity5
Type of contactChangeover contact
Switching outputPhase-independent
Method of connection terminalScrew terminals
Power reserve3 years
Switching capacity at 250 V AC, cos φ = 116A
Switching capacity at 250 V AC, cos φ = 0,610A
Incandescent/halogen lamp load 230V2600W
Energy saving lamps170W
LED lamp < 2 W
30W
LED lamp 2–8 W100W
LED lamp > 8 W120W
Fluorescent lamp load (electronic ballast)650W
Fluorescent lamp load (conventional) not corrected1000VA
Fluorescent lamp load (conventional)series-corrected1000VA
Fluorescent lamp load (conventional)parallel-corrected730 VA 80μF
Time accuracy at 25 °Ctypical ± 2 s/day (quartz)
Consumed power4VA
Test approvalCE
Type of protectionIP20
Protection classII according to EN 60 730-1
Housing and insulation materialHigh-temperature resistant, self-extinguishing thermoplastic
Work temperature-10 ~ +50 °C (non-icing)
Ambient humidity35~85RH
Application:
Timer switch is a kind of time-controller, mainly applied in controlling variety
of electrical equipment automatically in a cycling way.
It’s easy to operate, and widely used in controlling system, such as mechanical equipments,advertisements lamp box, breeding, irrigation,Lighting, water heater,agriculture facilities, broadcasting equipment, home appliance, etc.
Specifications |
Rated voltage | 110/220VAC |
Frequency | 50HZ/60HZ |
Power Consumption | 1.5W |
Driving method | AC Synchronous motor |
Load Capacity | 16(10)A 220V |
Minimum Time set Interval | 15 Minutes |
Ambient Temperature | -10℃~+50℃ |
Ambient Humidity | Below 85% |
Size | 72×72×53mm |
